Sorensen

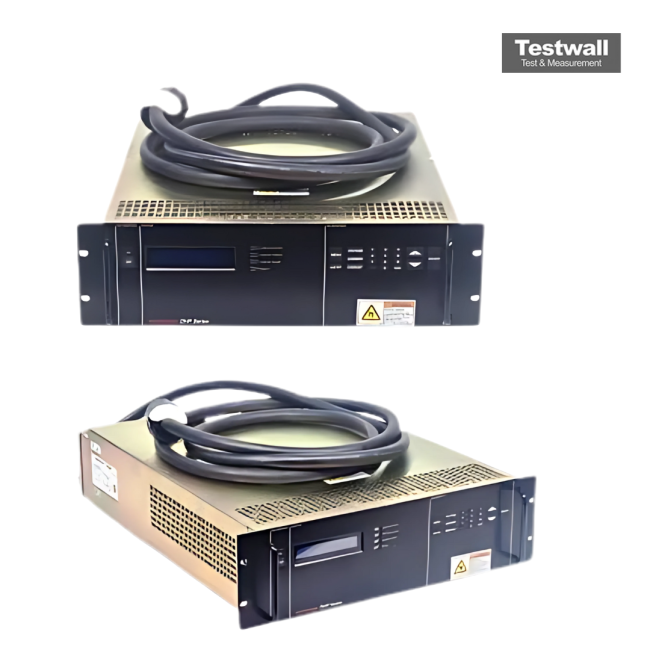

Sorensen DHP400-25
400-25 DC Power Supply
0 - 400 VDC Output Voltage
0 - 25 A Output Current
10,000 W (10 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 400 VDC |
| Output Current | 0 - 25 A |
| Output Power | 10,000 W (10 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.02% of full scale output |
| Load Regulation | 0.02% of full scale output |
| Programming Interface | Analog, RS-232, GPIB (IEEE-488), RS-485 |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DHP400-25 Options:
- DHP400-25 - Three, 3-wire plus ground - Three-phase input (optional, for 2 kW to 3 kW series)
- DHP400-25 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP400-25 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP400-25 |
|---|
