Sorensen

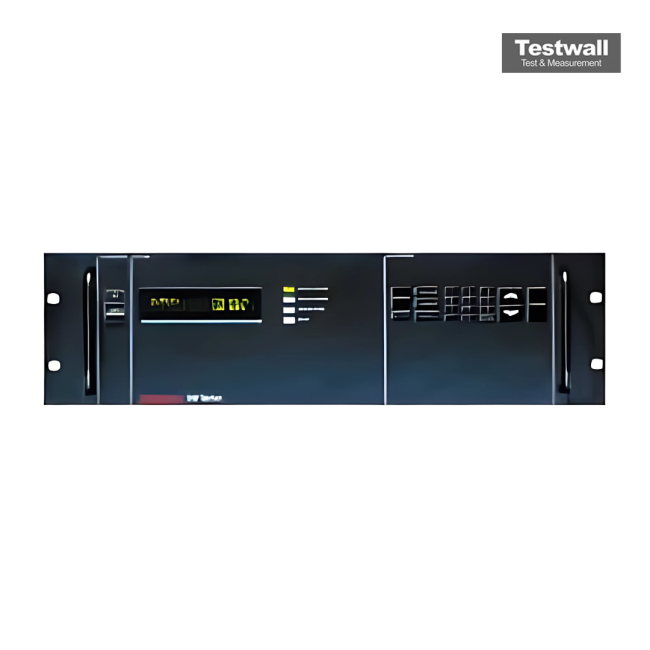

Sorensen DHP60-50
60-50 DC Power Supply
0 - 60 V Output Voltage
0 - 50 A Output Current
3000 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 V |
| Output Current | 0 - 50 A |
| Output Power | 3000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Operating Temperature | 0°C to 50°C |
| Interface / Programming | Analog Programming, RS-232/RS-485 Optional |
Sorensen DHP60-50 Options:
- DHP60-50 - Three, 3-wire plus ground - Three-phase input (optional, for 2 kW to 3 kW series)
- DHP60-50 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP60-50 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP60-50 |
|---|
