Sorensen

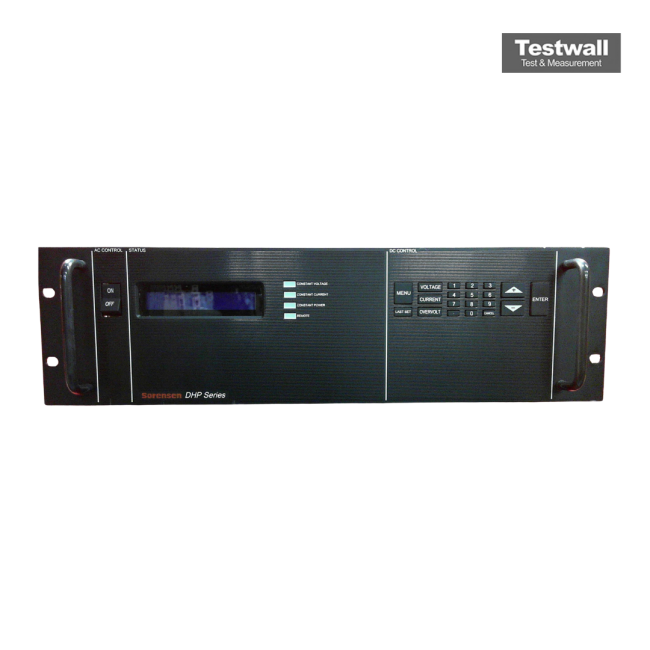

Sorensen DHP600-16
600-16 DC Power Supply
0 – 600 VDC Output Voltage
0 – 16 A Output Current
9,600 W (9.6 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 600 VDC |
| Output Current | 0 – 16 A |
| Output Power | 9,600 W (9.6 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation | 0.01% of full-scale output |
| Load Regulation | 0.01% of full-scale output |
| Ripple and Noise | 0.05% RMS / 0.15% peak-to-peak of full-scale output voltage |
| Programming Interface | Analog (0–5V or 0–10V), RS-232, GPIB (IEEE-488), and Ethernet (optional) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Sorensen DHP600-16 Options:
- DHP600-16 - Three, 3-wire plus ground - Three-phase input option (2 kW to 3 kW series)
- DHP600-16 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP600-16 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP600-16 |
|---|
