Sorensen

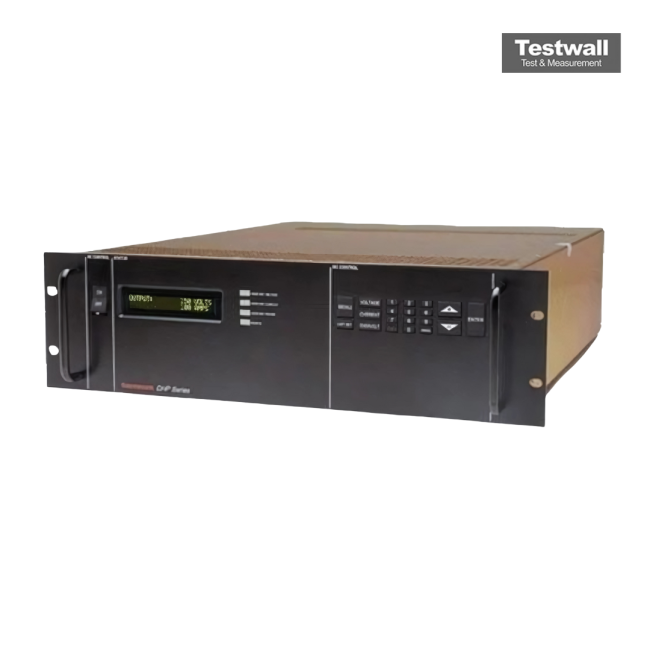

Sorensen DHP80-350
80-350 DC Power Supply
0 – 80 V Output Voltage
0 – 350 A Output Current
28,000 W (28 kW) Output Power
208/220 V AC, Three-Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 V |
| Output Current | 0 – 350 A |
| Output Power | 28,000 W (28 kW) |
| Input Voltage | 208/220 V AC, Three-Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation (Voltage) | 0.02% of full scale output |
| Load Regulation (Voltage) | 0.02% of full scale output |
| Ripple and Noise (Voltage) | 0.05% RMS of full scale output |
| Programming Interface | Analog (0–5 V or 0–10 V), RS-232, GPIB (IEEE-488) optional |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Model | DHP80-350 |
|---|
