Sorensen

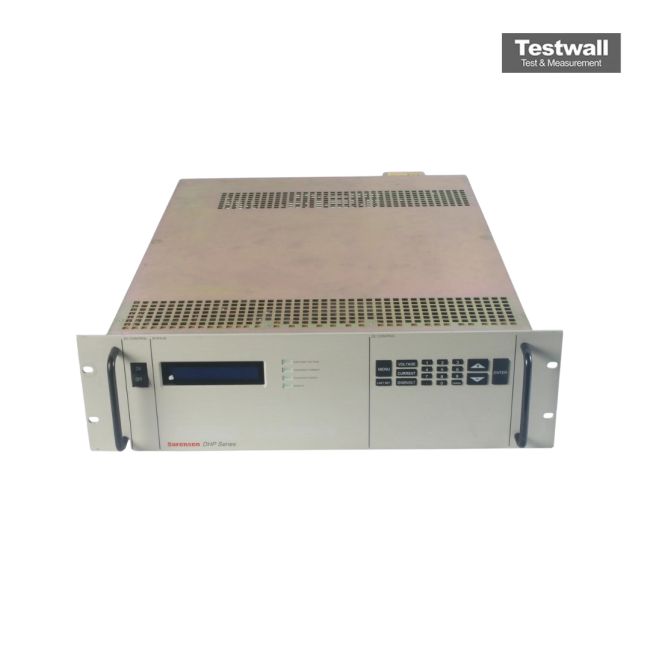

Sorensen DHP80-62
80-62 DC Power Supply
0 – 80 VDC Output Voltage
0 – 62 A Output Current
5000 W (5 kW) Output Power
208/240 VAC, Single Phase, 50/60 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 VDC |
| Output Current | 0 – 62 A |
| Output Power | 5000 W (5 kW) |
| Input Voltage | 208/240 VAC, Single Phase, 50/60 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, rms) | 10 mV rms |
| Programming Interface | Analog, RS-232, GPIB (IEEE-488), and Ethernet (optional) |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Dimensions | Rack mountable, 3U chassis |
Sorensen DHP80-62 Options:
- DHP80-62 - Three, 3-wire plus ground - Three-phase input (optional, for 2 kW to 3 kW series)
- DHP80-62 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP80-62 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP80-62 |
|---|
