Sorensen

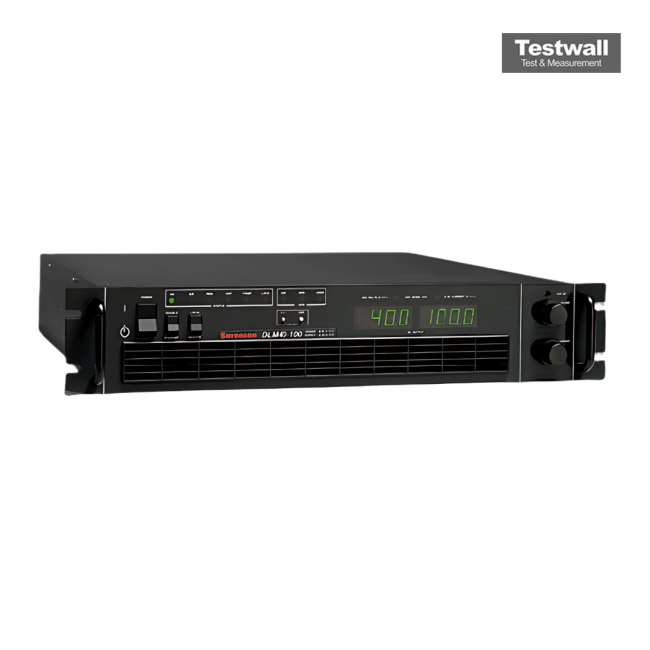

Sorensen DLM40-100
DC Power Supply.
0 – 40 VDC Output Voltage
0 – 100 A Output Current
4000 W Output Power
208/240 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 40 VDC |
| Output Current | 0 – 100 A |
| Output Power | 4000 W |
| Input Voltage | 208/240 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 10 mV RMS |
| Programming Interface | Analog (0–5 V or 0–10 V), RS-232/RS-485 optional |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Dimensions | 3U Rack Mount, 19-inch rack compatible |
Sorensen DLM40-100 Options:
- DLM40-100 - M1 - Input Voltage Option: 345-455 VAC, 47-63 Hz, three phase, 3 wire plus ground, Delta or Wye (4 kW only)
- DLM40-100 - M2 - Input Voltage Option: 432-528 VAC, 47-63 Hz, three phase, 3 wire plus ground, Delta or Wye (4 kW only)
- DLM40-100 - M9E - Remote Interface Option: SCPI compatible IEEE-488.2 and RS 232 Interfaces (May not be combined with M51A or M85)
- DLM40-100 - M13 - Remote Interface Option: Locking shafts (front panel potentiometers)
- DLM40-100 - M51A - Remote Interface Option: Optically Isolated Analog Programming (May not be combined with M9C or M85)
- DLM40-100 - M85 - Remote Interface Option: Multichannel Slave Interface (May not be combined with M9E or M51A)
- DLM40-100 - 5361969-01 - Parallel Cable: Paralleling Cable, one cable per slave unit
- DLM40-100 - 105-300-26 - Rack Slide Kit
| Model | DLM40-100 |
|---|
The Sorensen DLM40-100 is a DC Power Supply.
