Sorensen

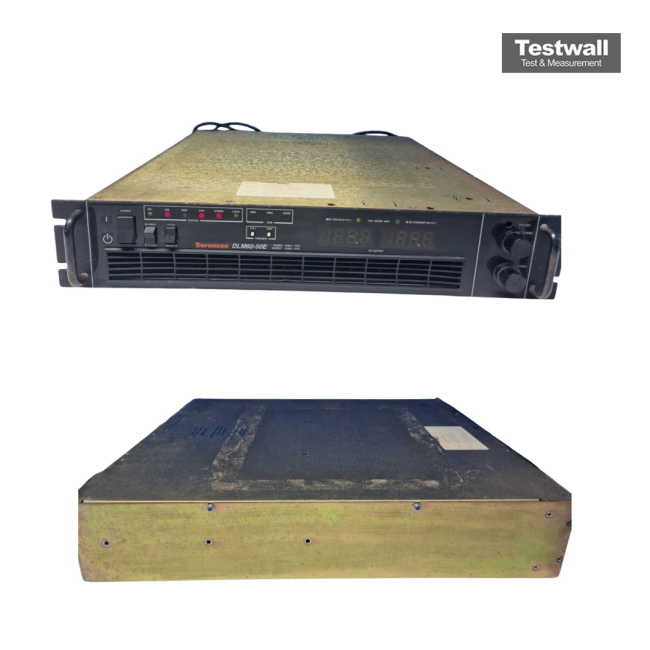

Sorensen DLM60-50E
0 - 60 VDC Output Voltage
0 - 50 A Output Current
3000 W Output Power
115/230 VAC, Single Phase, 50/60 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 VDC |
| Output Current | 0 - 50 A |
| Output Power | 3000 W |
| Input Voltage | 115/230 VAC, Single Phase, 50/60 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS / 5 mV Peak-to-Peak |
| Programming Interface | Analog (0-5V or 0-10V), with optional GPIB/RS-232 |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DLM60-50E Options:
- DLM60-50E - M9E - SCPI compatible IEEE-488.2 and RS 232 interfaces (May not be combined with M51A or M85)
- DLM60-50E - M13 - Locking shafts (front panel potentiometers)
- DLM60-50E - M51A - Isolated analog programming (May not be combined with M9E or M85)
- DLM60-50E - M85 - Multichannel slave interface (May not be combined with M9E or M51A)
| Model | DLM60-50E |
|---|
