Sorensen

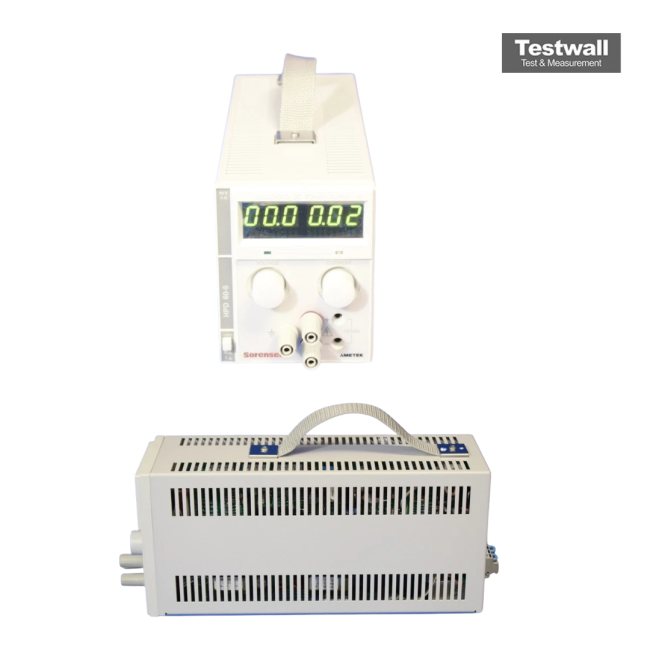

Sorensen HPD60-5
0 - 60 VDC Output Voltage
0 - 5 A Output Current
300 W Output Power
105 - 132 VAC / 210 - 264 VAC, 47 - 63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 VDC |
| Output Current | 0 - 5 A |
| Output Power | 300 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS / 5 mV peak-to-peak |
| Programming Accuracy (Voltage) | 0.05% + 30 mV |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mountable, 3U |
Sorensen HPD60-5 Options:
- HPD60-5 - M2 - Input Voltage: 200-250 VAC, single phase, 47-63 Hz
- HPD60-5 - M5A - Analog Programming: Internal interface for full scale remote programming of output voltage and/or current by a 0-10V or 0-10 kΩ external source connected at the rear panel. Includes 0-10V readback, externally adjustable overvoltage protection (OVP), TTL shutdown with selectable logic, master/slave tracking and status signals for programming mode, operating mode, OVP and output fail flag (May not be combined with M9B)
- HPD60-5 - M9B - Internal IEEE-488 Interface: Features complete remote programming, including status reporting, settings query and interrupt generation with user-designated fault conditions. Both the voltage and current output are precisely programmed directly in volts and amps (May not be combined with M5A)
- HPD60-5 - M11 - 10-turn current control potentiometer
- HPD60-5 - M13 - Locking shafts (front panel potentiometers)
- HPD60-5 - M15 - Front panel binding posts
- HPD60-5 - M18 - Carrying handle
- HPD60-5 - RM-XHS - Rack Adapter Kit
| Model | HPD60-5 |
|---|
