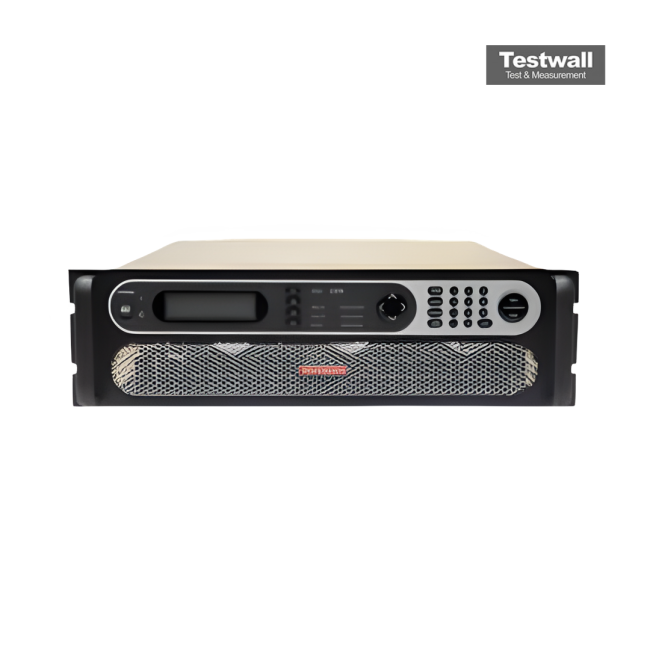

Sorensen SGA60X83
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 VDC |
| Output Current | 0 - 83 A |
| Output Power | 5000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Programming Interface | Analog, RS-232, GPIB (optional) |
| Operating Temperature | 0°C to 50°C |
| Model | SGA60X83 |
|---|
The Sorensen SGA60X83 0-60V, 83A, 5KW DC Power Supply offers precise DC output ranging from 0 to 60 volts and up to 83 amps, delivering a maximum of 5 kW power. Designed with advanced regulation and stability, it provides low ripple and noise for demanding laboratory, production, and testing applications. Its robust design ensures consistent performance even under variable load conditions.
Ideal for powering high-current devices, performing endurance testing, or simulating real-world operating conditions, the unit delivers accurate control and dependable output across a wide voltage and current range.
Testwall can supply the used Sorensen SGA60X83 0-60V, 83A, 5KW DC Power Supply, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Sorensen SGA60X83 0-60V, 83A, 5KW DC Power Supply.
