Sorensen SGI1K0X15
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 1000 V |
| Output Current | 0 - 1.5 A |
| Output Power | 1500 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Line Regulation (Voltage) | 0.02% of full scale |
| Load Regulation (Voltage) | 0.02% of full scale |
| Ripple and Noise (Voltage) | 200 mV RMS |
| Programming Interface | Analog, RS-232, GPIB (optional), Ethernet (optional) |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen SGI1K0X15 Options:
- SGI1K0X15 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGI1K0X15 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGI1K0X15 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGI1K0X15 - 0A - No Remote Control Option
- SGI1K0X15 - 1A - IEEE-488.2 + RS-232C
- SGI1K0X15 - 1C - Ethernet + RS-232C
- SGI1K0X15 - 1D - Isolated Analog Control
- SGI1K0X15 - 2A - Combined Options 1A+1D
- SGI1K0X15 - 2G - Combined Options 1C+1D
- SGI1K0X15 - AA - No Process Option
- SGI1K0X15 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGI1K0X15 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGI1K0X15 - CV - 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGI1K0X15 - PF - Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
- SGI1K0X15 - R - RoHS Compliant Version
| Model | SGI1K0X15 |
|---|

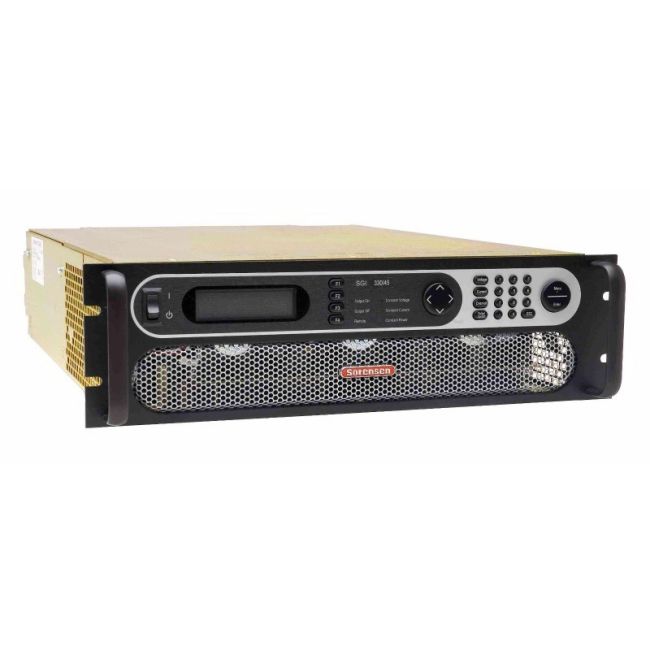

SORENSEN SGI1K0X15 DC Power Supply
The Sorensen SGI1K0X15 DC power supply is designed for exceptional load transient response, low noise and the highest power density in the industry. It combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI1K0X15 ideal for repetitive testing.
With a full 15 kW available in a 3U package the Sorensen SGI1K0X15 leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. An impressive vacuum fluorescent graphical display in eight languages, context sensitive €œsoft " keys and front panel keyboard simplify programming of the SGI1K0X15. Up to 5 units may be paralleled for additional cur within the power supply single-unit specifications, with exception of the DC output cur set accuracy. Additional paralleled units will add 0.3% inaccuracy per unit.
Specifications for the SORENSEN SGI1K0X15 DC Power Supply Include:
| Voltage | 1000V |
| Cur | 15A |
| Total Power | 15kW |
| Ripple & Noise (RMS) | 100 mV |
