Sorensen

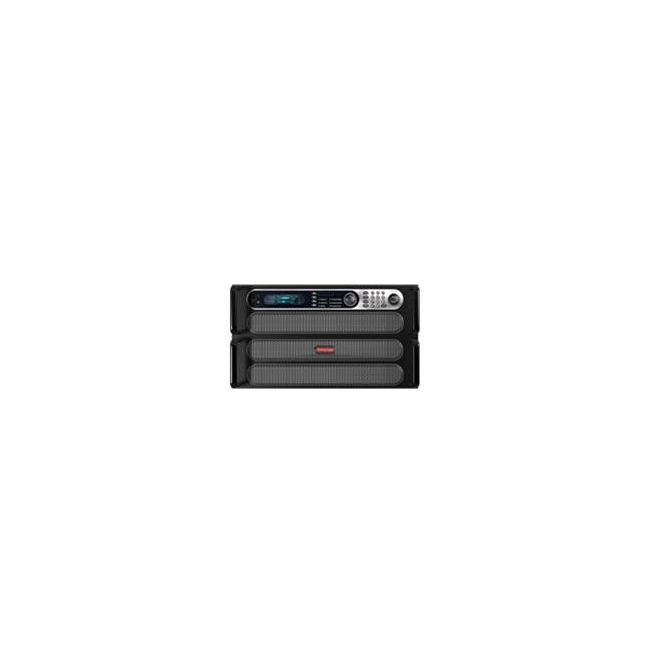

Sorensen SGI60-500
DC Power Supply, 60V, 500A, 30kW
0 - 60 V DC Output Voltage
0 - 500 A Output Current
30,000 W (30 kW) Output Power
208/240 V AC, Three-Phase Input Voltage
47 - 63 Hz Line Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 60 V DC |
| Output Current | 0 - 500 A |
| Output Power | 30,000 W (30 kW) |
| Input Voltage | 208/240 V AC, Three-Phase |
| Line Frequency | 47 - 63 Hz |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Output Ripple (RMS) | 0.1% of full scale or 15 mV, whichever is greater |
| Programming Interface | Analog (0-5V / 0-10V), RS-232, GPIB (optional) |
| Operating Temperature | 0°C to 50°C |
Sorensen SGI60-500 Options:
- SGI60-500 - A - Control Option: Analog
- SGI60-500 - I - Control Option: Intelligent
- SGI60-500 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGI60-500 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGI60-500 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGI60-500 - 0A - Remote Control: No Option
- SGI60-500 - 1A - Remote Control: IEEE-488.2 + RS-232C
- SGI60-500 - 1C - Remote Control: Ethernet + RS-232C
- SGI60-500 - 1D - Remote Control: Isolated Analog Control
- SGI60-500 - 1E - Remote Control: Shaft Locks (SGA series only)
- SGI60-500 - 2A - Remote Control: Combined Options 1A+1D
- SGI60-500 - 2C - Remote Control: Combined Options 1A+1E (SGA Only)
- SGI60-500 - 2G - Remote Control: Combined Options 1C+1D
- SGI60-500 - 2H - Remote Control: Combined Options 1C+1E (SGA Only)
- SGI60-500 - 2J - Remote Control: Combined Options 1D+1E (SGA Only)
- SGI60-500 - 3C - Remote Control: Combined Options 1A+1D+1E (SGA Only)
- SGI60-500 - 3G - Remote Control: Combined Options 1C+1D+1E (SGA Only)
- SGI60-500 - AA - Process Option: No Option
- SGI60-500 - AB - Process Option: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGI60-500 - AJ - Modification: Front panel dust filter - factory installed - 3U unit only
- SGI60-500 - CV - Modification: 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGI60-500 - PF - Modification: Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V)
- SGI60-500 - R - RoHS Compliant Version
| Model | SGI60-500 |
|---|
SORENSEN SGI60-500 DC Power Supply The Sorensen SGI60-500 represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. At the heart of the SGI60-500 is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system cur.SGI: Advanced Intelligent Control (Sorensen General purpose Intelligent): The SGI combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI. Specifications for the SORENSEN SGI60-500 DC Power Supply Include:
