Sorensen SGI800-13

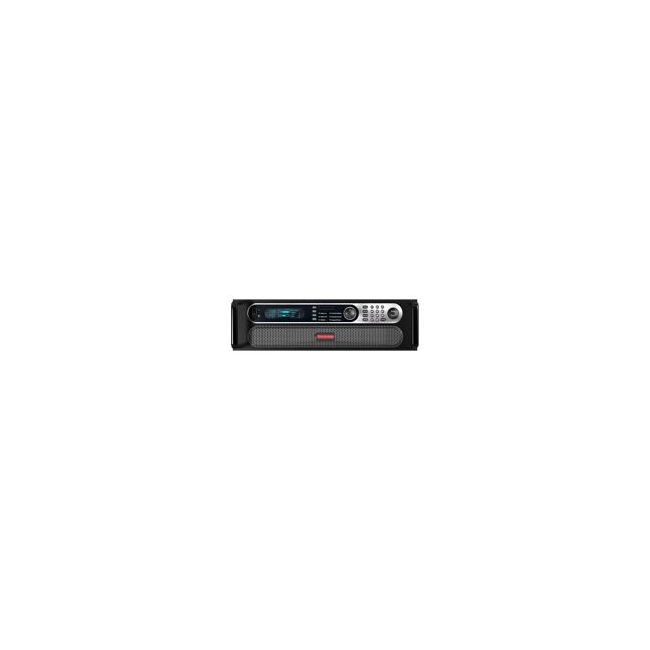

SORENSEN SGI800-12.5 DC Power Supply, 800V, 12.5A, 10kW (call for availability)

The Sorensen SGI800-12.5 DC Power Supply is a high powered, programmable power supply designed for exceptional load transient response, low noise, and the highest power density in the industry. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.
The Sorensen SGI800-12.5 DC Power Supply (SGI = Sorensen General Purpose Intelligent) combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the Sorensen SGI800-12.5 DC Power Supply ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive "soft" keys and front panel keyboard simplify programming of the Sorensen SGI800-12.5 DC Power Supply. Features and Specifications of the Sorensen  SGA800-12.5 DC Power Supply include:

High Power Density: Up to 15 kW in a 3U chassis

Wide Voltage Range: 0-10V up to 0-800V, in increments of 5 kW from 5 to 30 kW

Fast Load Transient Response: Protection from undesired voltage excursions

Low RMS and P-P Noise:  Suitable for the most sensitive applications

Parallelable up to 150 kW: Expandable as your requirement grows

Modular Design: Upgradeable for the ultimate in investment protection

Sequencing: Program custom waveforms

Easy-to-read Fluorescent Display: SGI supports English, French, German, Italian, Spanish, Chinese, Japanese, and Korean languages

16-bit Resolution:  Optional IEEE-488.2 + RS-232C + Ethernet provides precise control

Ethernet Control: LXI Class C compliant communication through integrated web server

Direct Relay Control: Control output and sense isolation relays, along with polarity relays. (Ethernet Option Only)

Hardware Trigger: Ethernet Option Only

Common:

Remote Sense:  Terminals are provided to sense output voltage at point of load. Maximum line drop 5% of rated voltage per line for 40-100V models, line drop 1V of rated voltage per line for 10-20V models, 1.5V for 30V models, 2% of rated voltage per line for models 160V and greater. (Greater line drop is allowed, but output regulation specifications no longer apply).

Parallel Operation:  Up to 5 units may be paralleled for additional cur within the power supply single-unit specifications, with exception of the DC output cur set accuracy. Additional paralleled SG units will add 0.3% inaccuracy per unit. To parallel more than 5 units, contact factory.

Series Operation:  Up to 2 units

Input:

Nominal Voltage 3 phase, 3 wire + ground:

• 208/220 VAC (operating range 187 - 242 VAC)
• 380/400 VAC (operating range 342 - 440 VAC)
• 440/480 VAC (operating range 396 - 528 VAC)

Frequency:  47 – 63Hz , 400Hz

Power Factor:

• >0.9 typical for 208/220 VAC input (10V - 800V)
• >0.78 typical for 380/400 VAC input (40V - 800V)
• >0.9 typical for 380/480 VAC input (10V - 30V)
• >0.7 typical for 440/480 VAC input (40V - 800V)
• >0.9 typical for 440/480 VAC input (10V - 30V)

Protection:  ½ cycle ride-though on all three phases, 3 cycle ride through on single phase; missing phase shutdown (800V model 6.4 msec on all 3 phases)

• 208/220 VAC (operating range 187 - 242 VAC)
• 380/400 VAC (operating range 342 - 440 VAC)
• 440/480 VAC (operating range 396 - 528 VAC)

208/220 VAC (operating range 187 - 242 VAC)

380/400 VAC (operating range 342 - 440 VAC)

440/480 VAC (operating range 396 - 528 VAC)

• >0.9 typical for 208/220 VAC input (10V - 800V)
• >0.78 typical for 380/400 VAC input (40V - 800V)
• >0.9 typical for 380/480 VAC input (10V - 30V)
• >0.7 typical for 440/480 VAC input (40V - 800V)
• >0.9 typical for 440/480 VAC input (10V - 30V)

>0.9 typical for 208/220 VAC input (10V - 800V)

>0.78 typical for 380/400 VAC input (40V - 800V)

>0.9 typical for 380/480 VAC input (10V - 30V)

>0.7 typical for 440/480 VAC input (40V - 800V)

>0.9 typical for 440/480 VAC input (10V - 30V)

Output:

Voltage and Cur Range: 800V, 12.5A, 10kW

Ripple & Noise:

• rms(20Hz-300kHz): 80mV
• p-p: 500mV

• rms(20Hz-300kHz): 80mV
• p-p: 500mV

rms(20Hz-300kHz): 80mV

p-p: 500mV

Programming & Read-Back Specifications:

Front Panel Display:

• Programming:
• Accuracy:
•  (40-800V) +/- 0.1% of voltage at full scale
• (40-800V) +/- 0.4% of cur at full scale
• Resolution: 4.0 digits
• Read-Back Monitoring:
• Accuracy:
• Voltage: +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale
• Resolution: 4.0 digits
• Knob control & Display read-back

Remote Analog Interface:

• Programming:
• Accuracy:
• Voltage: +/-0.25% of full scale
• Cur: (40-800V) 0.8% of full scale
• Read-Back Monitoring:
• Accuracy: (40-800V) +/-1.0% of full scale
• 25-pin D-sub connector (0~5 V or 0~10 V)

Remote Digital Interface:

• Programming:
• Accuracy:
• Voltage:  +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale
• Resolution: +/-0.002% of full scale
• Read-Back Monitoring:
• Accuracy:
• Voltage:  +/- 0.15% of full scale
• Cur:  +/- 0.4% of full scale
• Resolution:  +/-0.002% of full scale
• RS-232C (Standard on SGI), Optional IEEE-488.2 and Optional LXI Compliant 10/100 base-T Ethernet

OVP:

• Programming:
• Accuracy: +/- 1% of full scale
• Resolution: +/-0.002% of full scale
• Programming range: 5-110% Configured from front panel, remote analog or via optional digital inputs

User I/O:

• Disconnect & Polarity-reversal relay control (Only available with Ethernet Option)

Programming:

• Accuracy:
•  (40-800V) +/- 0.1% of voltage at full scale
• (40-800V) +/- 0.4% of cur at full scale
• Resolution: 4.0 digits

Read-Back Monitoring:

• Accuracy:
• Voltage: +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale
• Resolution: 4.0 digits

Knob control & Display read-back

Accuracy:

•  (40-800V) +/- 0.1% of voltage at full scale
• (40-800V) +/- 0.4% of cur at full scale

Resolution: 4.0 digits

 (40-800V) +/- 0.1% of voltage at full scale

(40-800V) +/- 0.4% of cur at full scale

Accuracy:

• Voltage: +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale

Resolution: 4.0 digits

Voltage: +/- 0.1% of full scale

Cur: +/- 0.4% of full scale

Programming:

• Accuracy:
• Voltage: +/-0.25% of full scale
• Cur: (40-800V) 0.8% of full scale

Read-Back Monitoring:

• Accuracy: (40-800V) +/-1.0% of full scale

25-pin D-sub connector (0~5 V or 0~10 V)

Accuracy:

• Voltage: +/-0.25% of full scale
• Cur: (40-800V) 0.8% of full scale

Voltage: +/-0.25% of full scale

Cur: (40-800V) 0.8% of full scale

Accuracy: (40-800V) +/-1.0% of full scale

Programming:

• Accuracy:
• Voltage:  +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale
• Resolution: +/-0.002% of full scale

Read-Back Monitoring:

• Accuracy:
• Voltage:  +/- 0.15% of full scale
• Cur:  +/- 0.4% of full scale
• Resolution:  +/-0.002% of full scale

RS-232C (Standard on SGI), Optional IEEE-488.2 and Optional LXI Compliant 10/100 base-T Ethernet

Accuracy:

• Voltage:  +/- 0.1% of full scale
• Cur: +/- 0.4% of full scale

Resolution: +/-0.002% of full scale

Voltage:  +/- 0.1% of full scale

Cur: +/- 0.4% of full scale

Accuracy:

• Voltage:  +/- 0.15% of full scale
• Cur:  +/- 0.4% of full scale

Resolution:  +/-0.002% of full scale

Voltage:  +/- 0.15% of full scale

Cur:  +/- 0.4% of full scale

Programming:

• Accuracy: +/- 1% of full scale
• Resolution: +/-0.002% of full scale

Programming range: 5-110% Configured from front panel, remote analog or via optional digital inputs

Accuracy: +/- 1% of full scale

Resolution: +/-0.002% of full scale

Disconnect & Polarity-reversal relay control (Only available with Ethernet Option)



Product Overview

The Sorensen SGI800-13  is a Programmable Precision High Power DC Power Supply that is designed for exceptional load transient response, low noise and high power density which is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. The SGI800-13 combines onboard intelligent controls with outstanding power electronics. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI800-13 ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI800-13.

Features of the Sorensen SGI800-13 include:

High Power Density: 10kW in a 3U chassis

Wide Voltage Range: 0-800V and 0-13 Amps

Fast Load Transient Response: Protection from undesired voltage excursions

Low RMS and P-P Noise: Suitable for the most sensitive applications

Parallelable up to 150 kW: Expandable as your requirement grows

Modular Design: Upgradeable for the ultimate in investment protection

Sequencing: Program custom waveforms

Easy-to-read Fluorescent Display: Supports English, French, German, Italian, Spanish, Chinese, Japanese, and Korean languages

16-bit Resolution: Optional IEEE-488.2 + RS-232C + Ethernet provides precise control

Ethernet Control: LXI Class C compliant communication through integrated web server

Direct Relay Control: Control output and sense isolation relays, along with polarity relays. (Ethernet Option Only)

Hardware Trigger: Ethernet Option Only

Specifications of the Sorensen SGI800-13 include:

Common:

Remote Sense: Load-line loss compensation for models <= 100 V is 10% above full scale voltage total (5% per load-line), and models > 100 V is 4% above full scale voltage total (2% per load-line).

Parallel Operation: Up to 5 units may be paralleled for additional cur within the power supply single-unit specifications, with exception of the DC output cur set accuracy. Additional paralleled SG units will add 0.3% inaccuracy per unit. To parallel more than 5 units,contact factory.

Series Operation: Up to 2 units (see Output Float Voltage)

Input:

Nominal Voltage 3 phase, 3 wire + ground: 208/220 VAC (operating range 187 - 242 VAC); 380/400 VAC (operating range 342 - 440 VAC); and 440/480 VAC (operating range 396 - 528 VAC)

Frequency: 47 – 63Hz (optional 400Hz @ 208VAC, does not carry CE, UL or CSA markings)

Power Factor: >0.9 typical at 208/220 VAC input; >0.78 typical at 380/400 VAC input; and  >0.69 typical at 440/480 VAC input

Protection (typical): ½ cycle ride-though on all three phases, 3 cycle ride through on single phase; missing phase shutdown (800V model 6.4 msec on all 3 phases)

Environmental:

Operating Temperature: 0 to 50º C

Storage Temperature: -25º C to 65º C

Humidity Range: Relative humidity up to 95% non-condensing, 0º C – 50º C

Altitude: Operating full power available up to 5,000 ft. (~1,500 m), derate 10% of full power for every 1,000 feet higher; non-operating to 40,000 ft. (~12,000 m)

Cooling: Front and side air inlet, rear exhaust. Temperature controlled, variable speed fans. Units may be stacked without spacing.

Regulatory: Certified to UL/CSA 61010 and IEC/EN 61010-1, CE Compliant, Semi-F47 Compliant

Front Panel Dust Filter: 30 PPI (Pores Per Inch) - must ensure adequate airflow and / or derate max. temperature. 3U unit only.

Physical:

Dimensions: Width: 19.00” (48.3 cm), Depth 25.0” (63.5 cm) Height: 5-15 kW units: 3U – 5.25” rack mount (13.34 cm) 20-30 kW units: 6U – 10.5” rack mount (26.67 cm)

Weight: 3U < 80 lbs. (36 kg) 6U

Output:

Ripple & Noise (Voltage Mode, Typical): Ripple and noise specified at full load, nominal AC input. Noise measured with 6ft. cable, 1µf at load

Ripple (Cur Mode): <+/- 0.04% of full scale rms cur

DC Voltage Slew Rate: 45A / ms typical - resistive load

Line Regulation (with sense wires used): (±10% of nominal AC input, constant load); Voltage Mode: +/- 0.01% of full scale; and Cur Mode: +/- 0.05% of full scale

Load Regulation (with sense wires used): no load to full load, nominal AC input); Voltage Mode: +/- 0.02% of full scale; and Cur Mode: +/- 0.1% of full scale

Load Transient Response: Recovers within 1ms to +/-0.75% of full-scale of steadystate output for a 50% to 100% or 100% to 50% load change

Efficiency: 87% typical at nominal line and max load

Stability: ±0.05% of set point after 30 minute warm-up and over 8 hours at fixed line, load and temperature

Temperature Coefficient: 0.02%/ C of maximum output voltage rating for voltage set point 0.03%/ C of maximum output cur rating for cur set point

Output Float Voltage: Negative terminal within +/- 300 V of chassis potential. (We recommend the use of optional isolated analog Interface (IAI).) Supplies in “series” should be the same output voltage/cur.

Programming Specifications of the Sorensen SGI800-13 include:

Front Panel Display:

Voltage Accuracy: +/- 0.1% of full scale

Cur Accuracy: +/- 0.4% of full scale

Resolution: 4.0 digits

Remote Analog Interface:

Voltage Accuracy: +/-0.25% of full scale for 0-5 V range, +/-0.5% of fullscale for 0-10 V range

Cur Accuracy: 0.8% of full scale

Remote Digital Interface:

Voltage Accuracy: +/- 0.1% of full scale

Cur Accuracy: +/- 0.4% of full scale

Resolution: +/-0.002% of full scale

OVP:

Accuracy: +/- 1% of full scale

Resolution: +/-0.002% of full scale

User I/O:

Disconnect & Polarity-reversal relay control (Only available with Ethernet Option)

Read-Back / Monitoring Specifications of the Sorensen SGI800-13 include:

Front Panel Display:

Voltage Accuracy: +/- 0.1% of full scale

Cur Accuracy: +/- 0.4% of full scale

Resolution: 4.0 digits

Remote Analog Interface:

Accuracy: +/-1.0% of full scale (0 - 10V)

Remote Digital Interface:

Voltage Accuracy: +/- 0.1% of full scale

Cur Accuracy: +/- 0.4% of full scale

Resolution: +/-0.002% of full scale

User I/O:

Disconnect & Polarity-reversal relay control (Only available with Ethernet Option)
