Sorensen

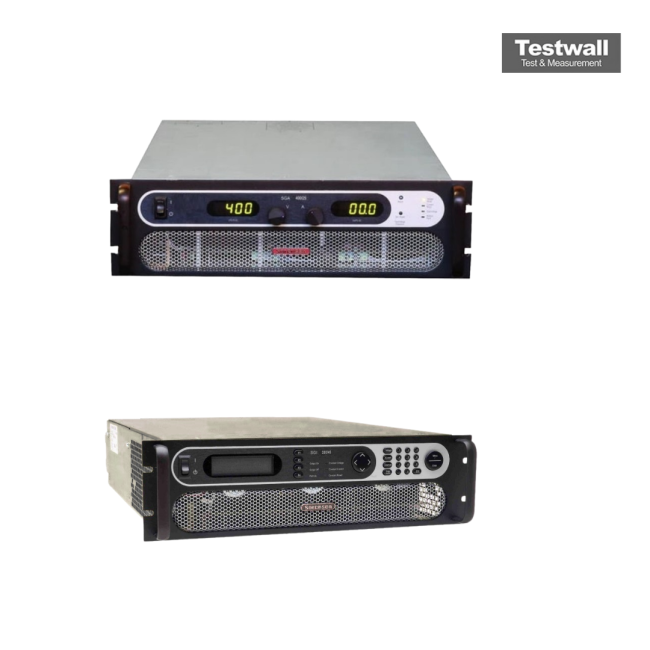

Sorensen SGI800-6.2
DC Power Supply, 800V, 6.2A, 5kW
0 – 800 V DC Output Voltage
0 – 6.2 A Output Current
5000 W Output Power
208/240 V AC, Single Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 800 V DC |
| Output Current | 0 – 6.2 A |
| Output Power | 5000 W |
| Input Voltage | 208/240 V AC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Output Ripple & Noise (RMS) | 0.1% of full scale output voltage |
| Programming Interface | Analog, RS-232, GPIB (optional), Ethernet (optional) |
| Form Factor | Rack Mount, 3U |
| Model | SGI800-6.2 |
|---|
SORENSEN SGI800-6.2 DC Power Supply (call for availability)The Sorensen SGI800-6.2 DC Power Supply is a high powered, programmable power supply designed for exceptional load transient response, low noise, and the highest power density in the industry. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units The Sorensen SGI800-6.2 DC Power Supply (SGI = Sorensen General Purpose Intelligent) co<span class=
