Sorensen

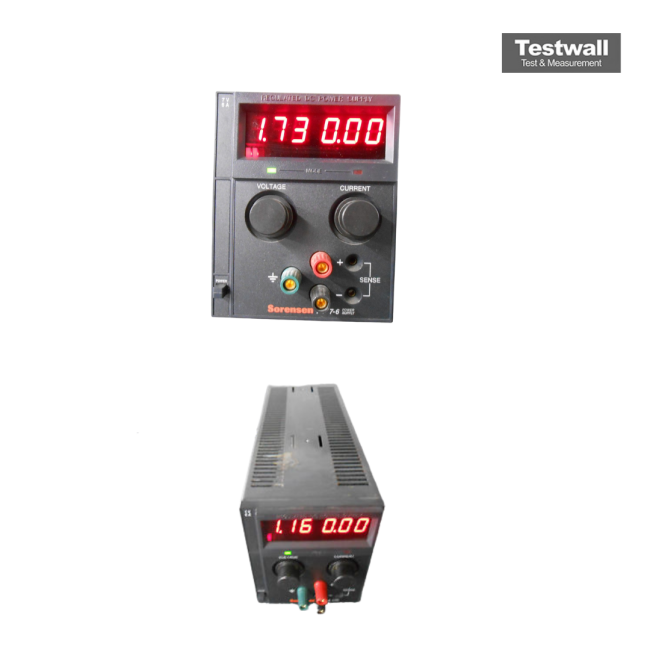

Sorensen XT7-6
Programmable DC Power Supply
0 - 7V Output Voltage
0 - 6A Output Current
42W Output Power
0.01% + 2mV Line Regulation (Voltage)
0.01% + 2mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 7V |
| Output Current | 0 - 6A |
| Output Power | 42W |
| Line Regulation (Voltage) | 0.01% + 2mV |
| Load Regulation (Voltage) | 0.01% + 2mV |
| Line Regulation (Current) | 0.01% + 250µA |
| Load Regulation (Current) | 0.01% + 250µA |
| Output Ripple & Noise (Voltage) | 1mV RMS |
| Input Voltage | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
Sorensen XT7-6 Options:
- XT7-6 - M1 - Power Input Modification: 110V ±10%, 47-63 Hz
- XT7-6 - M2 - Power Input Modification: 220V ±10%, 47-63 Hz
- XT7-6 - M3 - Power Input Modification: 230V ±10%, 47-63 Hz
- XT7-6 - M4 - Power Input Modification: 240V ±10%, 47-63 Hz
- XT7-6 - M5A - Analog Programming: Internal interface for full scale remote programming of output voltage and/or current by a 0-10V or 0-10 kΩ external source; includes 0-10V readback, externally adjustable offset and range, front panel adjustable OVP, TTL shutdown with selectable logic, master/slave tracking and status signals
- XT7-6 - M9B - Internal IEEE-488 Interface: Complete remote programming including status reporting, settings query and interrupt generation with user designated fault conditions; voltage and current output programmed directly in volts and amps (may not be combined with M5A)
- XT7-6 - M11 - 10-turn current control potentiometer
- XT7-6 - M13 - Locking shafts (front panel potentiometer)
- XT7-6 - RM-XHS - Rack Adapter Kit
| Model | XT7-6 |
|---|
