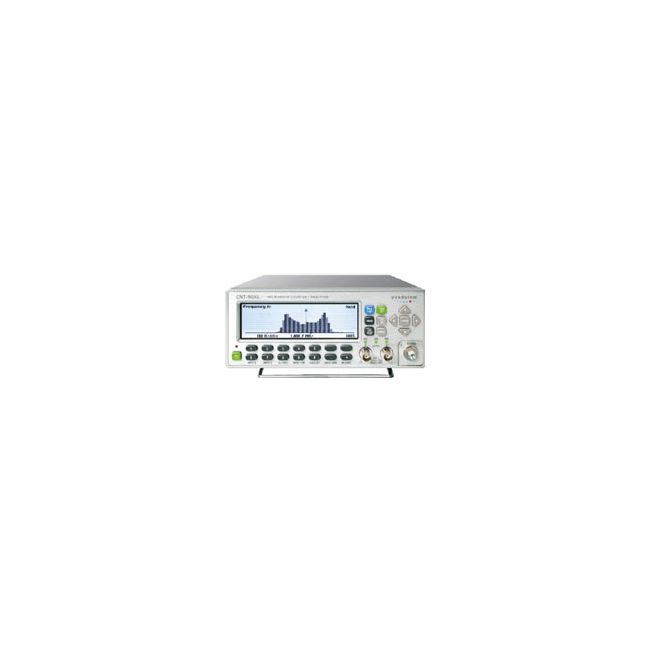

Spectracom CNT90XL
| Attribute | Value |
|---|---|
| Frequency Range | DC to 300 MHz (Channel A/B), DC to 20 GHz (Channel C with Option) |
| Resolution | Up to 12 digits per second |
| Time Interval Resolution | 50 ps single-shot resolution |
| Internal Timebase | High-stability OCXO oscillator, 10 MHz internal reference |
| Input Impedance | 1 MΩ or 50 Ω selectable per channel |
| Measurement Modes | Frequency, Period, Time Interval, Phase, Pulse Width, Duty Cycle, Rise/Fall Time, Totalize |
| Trigger Level Range | -5 V to +5 V with 1 mV resolution |
| Display | Large graphical LCD display with statistics and histogram readout |
| Interfaces | GPIB, RS-232, USB, and optional LAN connectivity |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 40 W maximum |
Spectracom CNT90XL Options:
- CNT-90XL-27G - 27G - 27 GHz Microwave Counter/Analyzer
- CNT-90XL-40G - 40G - 40 GHz Microwave Counter/Analyzer
- CNT-90XL-46G - 46G - 46 GHz Microwave Counter/Analyzer
- CNT-90XL-60G - 60G - 60 GHz Microwave Counter/Analyzer
- CNT90XL - 30/90 - Very High Stability Oven Time Base; 0.01 ppm/month
- CNT90XL - 40/90 - Ultra High Stability Oven Time Base; 0.003 ppm/month
- CNT90XL - 23/90 - Battery Unit; LiIon, 90 Wh
- CNT90XL - 22/90 - Rack-Mount Kit
- CNT90XL - 27 - Carrying Case - soft
- CNT90XL - 27H - Heavy-duty Hard Transport Case
- CNT90XL - 29/90 - TimeView Modulation Domain Analysis SW for CNT-90XL
- CNT90XL - 90/01 - Calibration Certificate with Protocol; Standard oscillator
- CNT90XL - 90/06 - Calibration Certificate; Oven oscillator
- CNT90XL - 90/00 - Calibration Certificate Frequency aging/week
- CNT90XL - 95/05 - Extended warranty from 3 to 5 years
- CNT90XL - OM-90 - Users Manual English (printed)
- CNT90XL - PM-90 - Programmers Manual English (printed)
- CNT90XL - SM-90 - Service Manual English
- CNT90XL - GS-90-EN - Getting Started English
- CNT90XL - GS-90-FR - Getting Started French
- CNT90XL - GS-90-DE - Getting Started German
| Model | CNT90XL |
|---|
The Spectracom CNT-90XL delivers advanced performance with an extended frequency range and rapid measurement cycles, ideal for aerospace, telecom, and research applications. Its high-speed precision and robust design ensure reliable operation even in demanding test environments.
With enhanced data logging, intuitive operation, and multiple connectivity interfaces, the CNT-90XL simplifies integration while offering efficient storage and analysis capabilities.
Testwall can supply the used Spectracom CNT-90XL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Spectracom CNT-90XL.
