Stanford Research

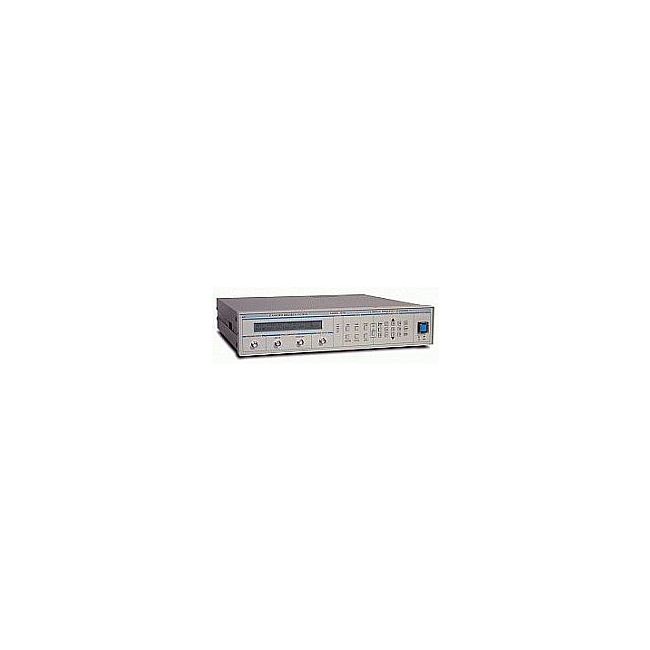

Stanford Research FS700
1 MHz to 3 GHz Frequency Range
0.001 Hz Frequency Resolution
±1 ppm/year Timebase Aging Rate
+13 dBm typical into 50 Ω Output Power
-110 dBc/Hz at 1 kHz offset (1 GHz carrier) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 3 GHz |
| Frequency Resolution | 0.001 Hz |
| Timebase Aging Rate | ±1 ppm/year |
| Output Power | +13 dBm typical into 50 Ω |
| Phase Noise | -110 dBc/Hz at 1 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase, Pulse |
| Output Impedance | 50 Ω |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface | GPIB, RS-232 |
| Operating Temperature | 0°C to 40°C |
Stanford Research FS700 Options:
- FS700 - Option 01 - Low phase noise oscillator (SC-cut)
- FS700 - Option 02 - RS-232 interface
| Model | FS700 |
|---|
