Stanford Research

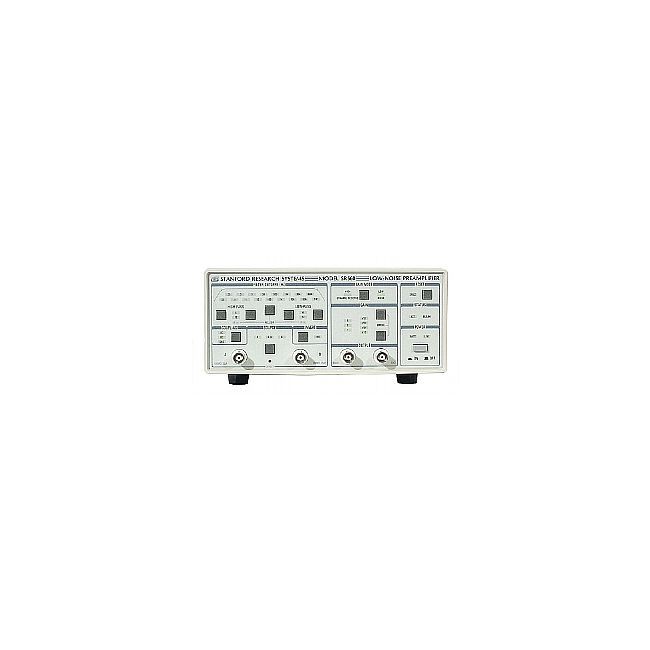

Stanford Research SR560
Dc - 1MHz PreAmplifier
1 to 50,000 (in 12 steps) Voltage Gain
DC to 1 MHz Frequency Bandwidth
4 nV/√Hz at 1 kHz Input Voltage Noise
6 dB/oct or 12 dB/oct Butterworth, highpass, lowpass, and bandpass Filter Type
0.03 Hz to 1 MHz (in 16 steps) Filter Frequency Range
| Attribute | Value |
|---|---|
| Voltage Gain | 1 to 50,000 (in 12 steps) |
| Frequency Bandwidth | DC to 1 MHz |
| Input Voltage Noise | 4 nV/√Hz at 1 kHz |
| Filter Type | 6 dB/oct or 12 dB/oct Butterworth, highpass, lowpass, and bandpass |
| Filter Frequency Range | 0.03 Hz to 1 MHz (in 16 steps) |
| Input Configuration | Single-ended or differential (A, B, or A-B) |
| Input Impedance | 100 MΩ with 25 pF capacitance |
| Dynamic Reserve | Greater than 100 dB |
| Power Supply | Battery powered (internal rechargeable batteries), up to 12 hours of operation |
| Output Drive | ±4 V into 1 kΩ load, DC coupled |
Stanford Research SR560 Options:
- SR560 - O560RMD - Double rack mount kit
- SR560 - O560RMS - Single rack mount kit
- SR560 - O560SB - Spare battery set (3 batteries)
| Model | Research |
|---|
The Stanford Research SR560 is a , Low-noise PreAmplifier that is ideal for a wide variety of applications including low-temperature Measurements, Optical detection, and Audio engineering. The SR560 has a differential front end with 4 nV/(square root Hz)
