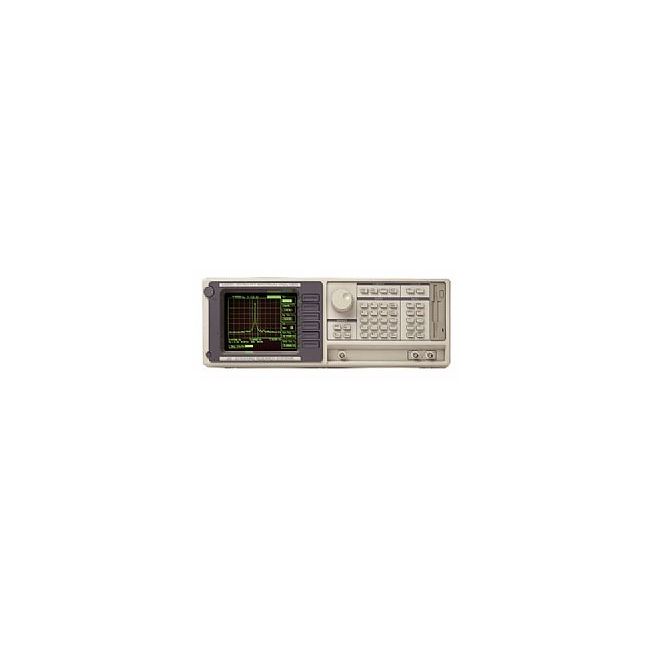

Stanford Research SR760
100kHz FFT Spectrum Analyser
1 Hz to 100 kHz Frequency Range
90 dB Dynamic Range
191 µHz (minimum) Frequency Resolution
1 mVpk to 1 Vpk full scale Input Voltage Range
400 lines per span Number of Display Points
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 100 kHz |
| Dynamic Range | 90 dB |
| Frequency Resolution | 191 µHz (minimum) |
| Input Voltage Range | 1 mVpk to 1 Vpk full scale |
| Number of Display Points | 400 lines per span |
| Amplitude Accuracy | ±0.15 dB |
| Input Impedance | 1 MΩ, 25 pF |
| Display | 480 x 240 pixel electroluminescent display |
| Averaging Modes | RMS, Vector, and Peak Hold averaging |
| Interface | GPIB and RS-232 |
| Model | SR760 |
|---|
The SR760 is a single-channel, 100 kHz FFT Spectrum Analyzer with a dynamic range of 90 dB and a real-time bandwidth of 100 kHz. The SR770 includes a low-distortion (-80 dB), synthesized source.
