Stanford Research

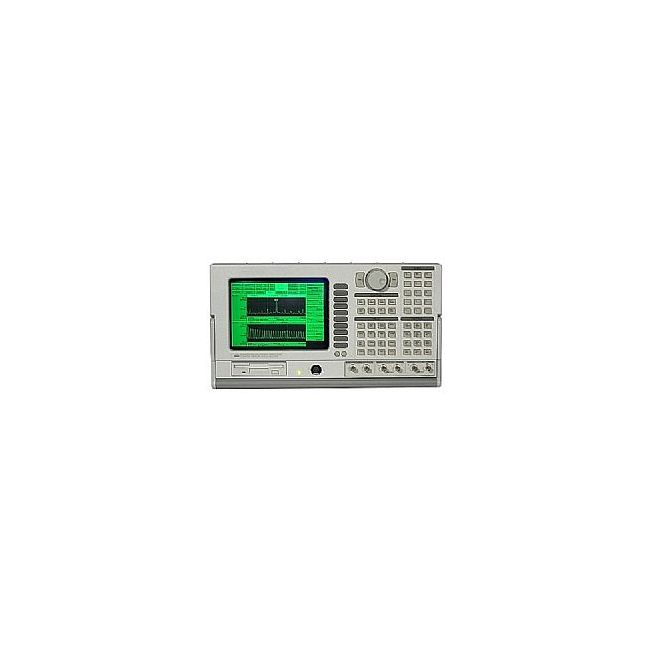

Stanford Research SR780
102.4 KHz Dynamic Signal Analyser
DC to 102.4 kHz Frequency Range
2 input channels Number of Channels
90 dB Dynamic Range
100, 200, 400, or 800 lines FFT Lines
1 mVpk to 1 Vpk full scale (single-ended or differential) Input Voltage Range
| Attribute | Value |
|---|---|
| Frequency Range | DC to 102.4 kHz |
| Number of Channels | 2 input channels |
| Dynamic Range | 90 dB |
| FFT Lines | 100, 200, 400, or 800 lines |
| Input Voltage Range | 1 mVpk to 1 Vpk full scale (single-ended or differential) |
| A/D Converter Resolution | 18-bit |
| Amplitude Accuracy | ±0.15 dB |
| Measurement Functions | Spectrum, PSD, time record, octave analysis, swept sine, order tracking, and more |
| Display | 10.4-inch color VGA touchscreen display |
| Interface/Connectivity | GPIB, RS-232, and Ethernet interfaces |
Stanford Research SR780 Options:
- SR780 - O780M1 - 8 Msample (32 Mbyte) memory
- SR780 - O780RM - Rack mount kit
- SR780 - CT100 - SRS instrument cart
| Model | SR780 |
|---|
The SR780 Dynamic Signal Analyser combines and in a full-featured package. It offers 102.4 KHz Dual-Channel FFTs with 90 dB dynamic range, 145 dB dynamic range swept-sine Measurements and real-Time ANSI standard octave analysis
