TDK-Lambda GEN12.5-120
| Attribute | Value |
|---|---|
| Output Voltage | 12.5 VDC |
| Output Current | 120 A |
| Output Power | 1500 W |
| Input Voltage | 208 / 240 VAC Single Phase |
| Input Frequency | 47 - 63 Hz |
| Output Voltage Adjustability | 0 - 12.5 VDC (Programmable) |
| Output Current Adjustability | 0 - 120 A (Programmable) |
| Remote Sense | Yes |
| Cooling Method | Fan Cooled |
| Form Factor | Rack Mount, 3U |
TDK-Lambda GEN12.5-120 Options:
- GEN12.5-120 - IEMD - GPIB (Multi-Drop Master) Interface
- GEN12.5-120 - MD - Multi-Drop Slave Interface
- GEN12.5-120 - IS510 - Voltage Programming Isolated Analog Interface
- GEN12.5-120 - IS420 - Current Programming Isolated Analog Interface
- GEN12.5-120 - LAN - LAN Interface (Complies with LXI Class C)
- GEN12.5-120 - USB - USB Interface
- GEN12.5-120 - E - AC Cord Set, Europe (10A/250Vac, INT'L 7/VII plug, IEC320-C13, 750W only)
- GEN12.5-120 - J - AC Cord Set, Japan (13A/125Vac, IEC320-C13, 750W only)
- GEN12.5-120 - I - AC Cord Set, Middle East (10A/250Vac, SI-32 plug, IEC320-C13, 750W only)
- GEN12.5-120 - U - AC Cord Set, North America (13A/125Vac, NEMA 5-15P plug, IEC320-C13, 750W only)
| Model | GEN12.5-120 |
|---|

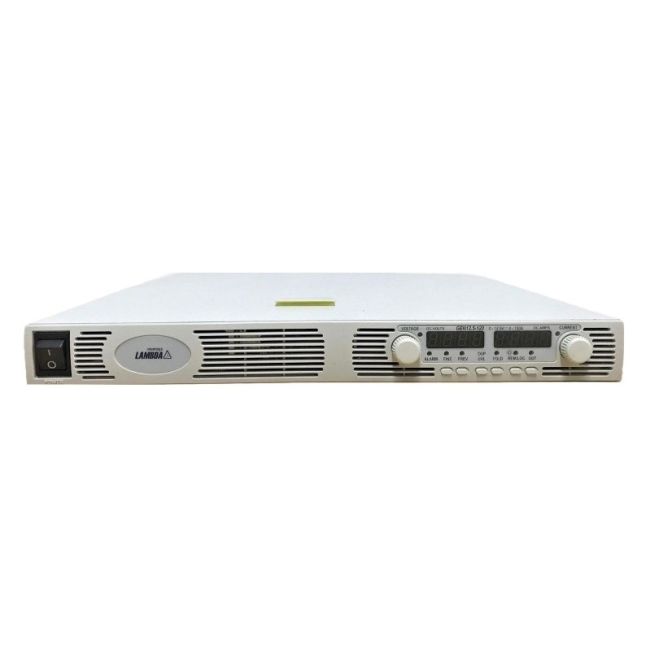

The TDK-Lambda GEN12.5-120 is a programmable power supply offering 12.5A and 120V output with exceptional high power density in a compact 1U design. It ensures low ripple and noise, integrated RS-232/RS-485 interfaces, and supports optional user-friendly communication modules. Parallel operation with active current sharing enables scaling up to four units for greater flexibility. Advanced safety features include Safe Re-Start, Last Setting Memory, and robust Active PFC (0.99 at full load), meeting stringent EMC and performance standards.
Its intuitive front panel provides precision control via selectable fine or coarse encoders, four-digit LED voltage/current displays, output On/Off, and Local/Remote selection. In Master/Slave mode, multiple units act seamlessly as one for demanding applications.
Testwall can supply the used TDK-Lambda GEN12.5-120, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK-Lambda GEN12.5-120.
