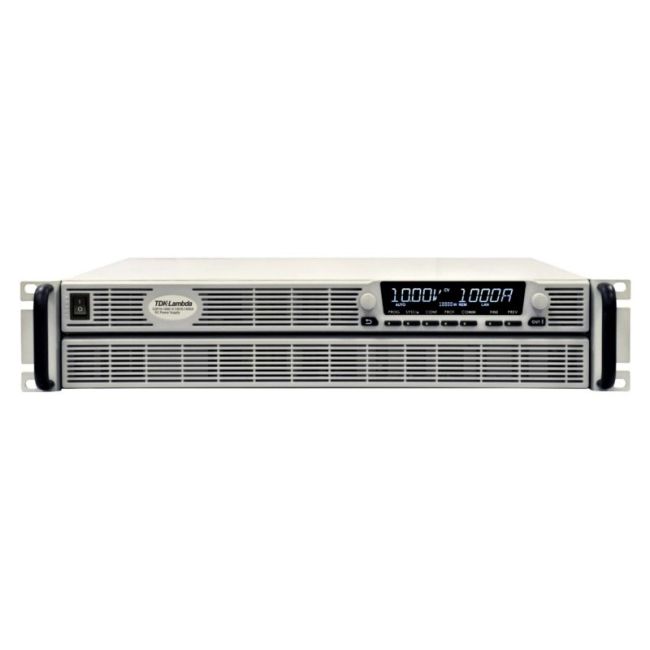

TDK-Lambda GSP10-1000
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 10 V DC |
| Output Current | 0 - 1000 A |
| Output Power | 10,000 W (10 kW) |
| Input Voltage | 3-Phase, 208/240/400/480 V AC |
| Input Frequency | 47 - 63 Hz |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
| Interface / Control | Analog, RS-232, RS-485, GPIB (optional), LAN (optional) |
TDK-Lambda GSP10-1000 Options:
- GSP10-1000 - IEEE - IEEE 488.2 & SCPI compliant interface with Multi-Drop capability (factory installed)
- GSP10-1000 - MDBS - Modbus-TCP interface (factory installed)
- GSP10-1000 - ECAT - EtherCAT interface (factory installed)
- GSP10-1000 - IS420 - Isolated Analog Current Program/Monitor Interface (4mA-20mA with 600V isolation)
- GSP10-1000 - B - Blank Front Panel / ATE version
- GSP10-1000 - 3P208 - Three Phase AC Input 170~265VAC
- GSP10-1000 - 3P400 - Three Phase AC Input 342~460VAC
- GSP10-1000 - 3P480 - Three Phase AC Input 342~528VAC
- GSP10-1000 - M - Printed User Manual
- GSP10-1000 - GEN/485-9 - RS-485 Serial Communication Cable (DB-9F, Shielded L=2m, RJ-45)
- GSP10-1000 - GEN/232-9 - RS-232 Serial Communication Cable (DB-9F, Shielded L=2m, RJ-45)
- GSP10-1000 - G/P - Bus Paralleling Cable (Shielded L=11cm)
- GSP10-1000 - GSP10kW-AFK - Front Panel Air Filter Assembly Kit
| Model | GSP10-1000 |
|---|
The TDK-Lambda GSP10-1000 is a high-density 2U programmable DC power supply offering low ripple, noise, and a built-in RS-232/RS-485 interface. It supports advanced parallel operation with active current sharing, enabling up to four units in auto-parallel configuration to scale output power flexibly. Safety features include Safe Re-Start, Last Setting Memory, and full compliance with European EMC requirements.
With user-friendly front panel controls, fine/coarse encoder adjustments, LED displays, and 0.99 Active Power Factor Correction, the GSP10-1000 is ideal for OEM, laboratory, and industrial environments, even in demanding AC conditions.
Testwall can supply the used TDK-Lambda GSP10-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the TDK-Lambda GSP10-1000.
