Tektronix 1502B
| Attribute | Value |
|---|---|
| Instrument Type | Metallic Time Domain Reflectometer (TDR) |
| Cable Range | Up to 50,000 feet (15,240 meters) |
| Distance Resolution | 0.1 foot (0.03 meter) |
| Display Type | Built-in CRT display |
| Pulse Width | 2 ns to 2 µs (selectable) |
| Velocity of Propagation Range | 0.50 to 0.99 (adjustable) |
| Power Requirements | 115/230 VAC, 50/60 Hz |
| Connector Type | BNC connector input |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Applications | Fault location and characterization of metallic cables including twisted pair and coaxial cables |
Tektronix 1502B Options:
- 1502B - Opt. 03 - Battery Pack
- 1502B - Opt. 04 - YT1 Chart Recorder; Records all information displayed on LCD, including waveform and settings for a permanent record
- 1502B - Opt. A1 - International Power Plug: Universal Euro 220 V, 50 Hz
- 1502B - Opt. A2 - International Power Plug: United Kingdom 240 V, 50 Hz
- 1502B - Opt. A3 - International Power Plug: Australian 240 V, 50 Hz
- 1502B - Opt. A4 - International Power Plug: North American 240 V, 60 Hz
- 1502B - Opt. A5 - International Power Plug: Switzerland 220 V, 50 Hz
- 1502B - SP232 - Serial Interface Module; Provides a serial link to a host PC for remote control, waveform storage, and automated fault finding. Includes host software for IBM-compatible PCs
- 1502B - REP4400 - Service Assurance: One year of post-warranty Repair Protection
- 1502B - CAL4400 - Service Assurance: One year of Calibration Services
| Model | 1502B |
|---|

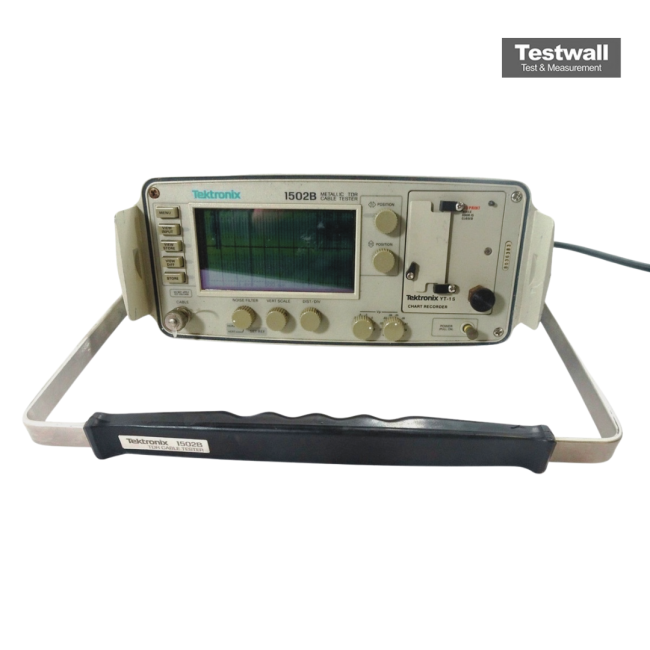

The Tektronix 1502B Metallic-cable Time-Domain Reflectometer (MTDR) is a specialized testing device employing radar technology to assess metallic cable integrity. It emits a half-sine wave signal that travels through the cable and captures reflection data for precise fault localization and impedance analysis using an LCD-based cursor technique.
Used to measure cable distance, locate faults, and evaluate impedance characteristics, it also supports waveform storage and optional chart printing for diagnostics.
Testwall can supply the used Tektronix 1502B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1502B.
