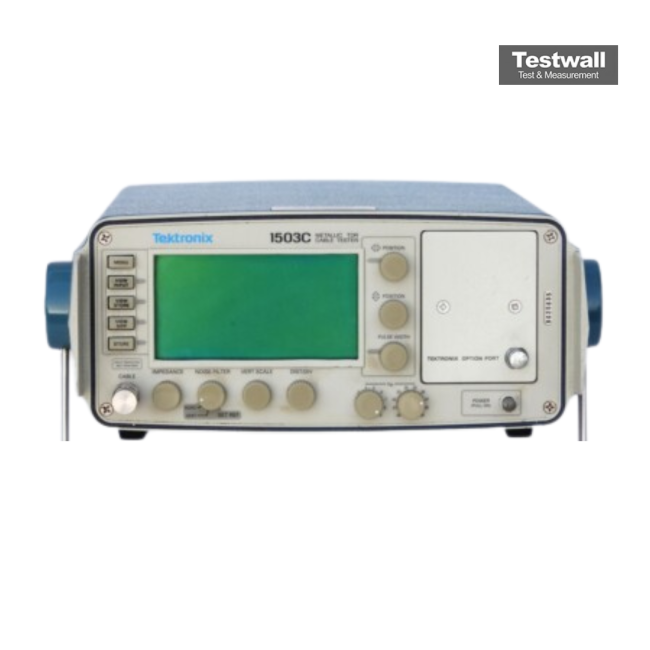

Tektronix 1503C
| Attribute | Value |
|---|---|
| Measurement Technology | Time Domain Reflectometry (TDR) |
| Distance Range | Up to 50,000 feet (15,240 meters) |
| Distance Accuracy | ±1% of reading or ±1 foot, whichever is greater |
| Display Type | Built-in LCD with waveform display |
| Cable Types Supported | Coaxial, twisted pair, and other metallic cables |
| Velocity of Propagation (VP) Range | 0.3 to 1.0 (adjustable in 0.001 increments) |
| Output Pulse | Fast-rise step pulse for precise fault location |
| Power Source | Internal rechargeable battery or AC adapter (120/240V) |
| Battery Life | Approximately 8 hours of continuous operation |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Tektronix 1503C Metallic TDR Options:
- 1503C - 03 - Battery Pack
- 1503C - 04 - Yt1 Chart Recorder
- 1503C - 05 - Metric Version
- 1503C - 06 - Live Ethernet Testing
- 1503C - 08 - Token Ring Adapter
- 1503C - 09 - Usoc/Eia568/Token Ring (R545) Adapter
- 1503C - 10 - Token Ring Interface
| Model | 1503C |
|---|
The Tektronix 1503C Metallic TDR is a versatile long-range MTDR designed for accurate cable fault detection, loss measurement, and impedance mismatch analysis. It can resolve faults as close as one foot apart, supports multiple selectable impedances, and offers a maximum testing range of 50,000 feet.
Ideal for telecommunication and network maintenance, this unit enables precise identification of cable issues over extensive distances, ensuring minimal downtime and accurate diagnostics in the field.
Testwall can supply the used Tektronix 1503C Metallic TDR, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1503C Metallic TDR.
