Tektronix

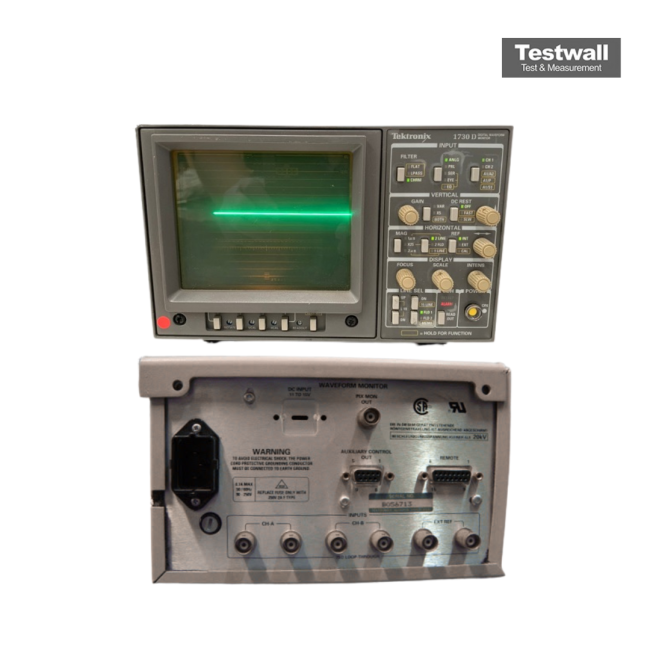

Tektronix 1730D
Waveform Monitor Instrument Type
2 Number of Channels
NTSC, PAL Video Standards Supported
Built-in CRT Display Display Type
5 MHz Bandwidth
| Attribute | Value |
|---|---|
| Instrument Type | Waveform Monitor |
| Number of Channels | 2 |
| Video Standards Supported | NTSC, PAL |
| Display Type | Built-in CRT Display |
| Bandwidth | 5 MHz |
| Input Impedance | 75 Ohms |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Form Factor | Benchtop / Rackmount |
| Signal Input | Composite Video (BNC Connectors) |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Model | 1730D |
|---|
The Tektronix 1730D integrates NTSC waveform and vector monitoring in a single compact unit, perfect for rack-mount setups in video production. It includes front-panel freeze and magnify, auto setup, and input overload protection within a durable chassis.
Ideal for precise video signal analysis, the Tektronix 1730D simplifies signal integrity checks with reliable controls and protective features for continuous professional use.
Testwall can supply the used Tektronix 1730D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1730D.
