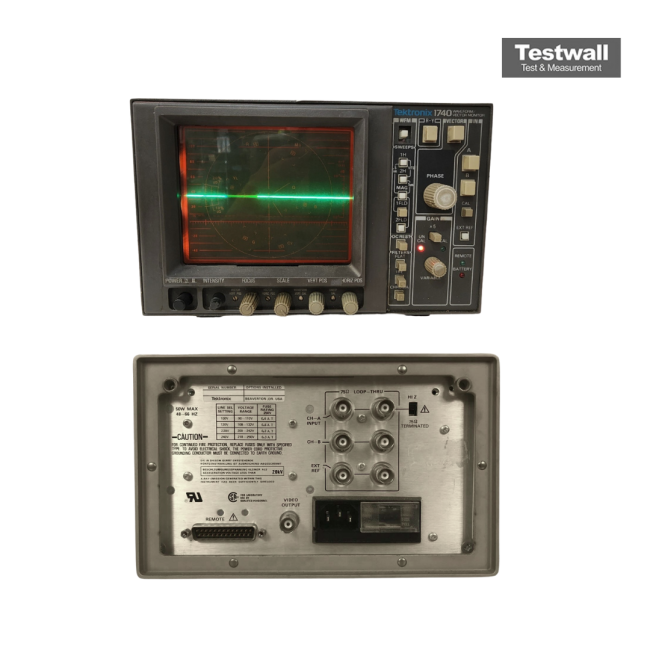

Tektronix 1740
NTSC Waveform/Vector Monitor
Waveform Monitor Display Type
Composite Video (NTSC/PAL) Input Signal
2 Number of Channels
5 MHz Bandwidth
8 x 10 cm rectangular CRT CRT Display Size
| Attribute | Value |
|---|---|
| Display Type | Waveform Monitor |
| Input Signal | Composite Video (NTSC/PAL) |
| Number of Channels | 2 |
| Bandwidth | 5 MHz |
| CRT Display Size | 8 x 10 cm rectangular CRT |
| Operating Modes | Waveform, Vector, and Parade Display Modes |
| Input Impedance | 75 Ohms |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 212 mm x 432 mm (5.25 in x 8.35 in x 17 in) |
| Model | 1740 |
|---|
The Tektronix 1740 waveform monitor supports NTSC and PAL composite signals with features including internal graticule, timing marks, and time-based expansion for accurate analysis.
It enables freeze-frame inspection and provides loop-through inputs for efficient signal monitoring in video production and post-production environments.
Testwall can supply the used Tektronix 1740, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1740.
