Tektronix 80A06
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix DSA8200, CSA8000, TDS8000 Series Sampling Oscilloscopes |
| Number of Channels | 2 Channels |
| Electrical Bandwidth | DC to 20 GHz |
| Optical Wavelength Range | 750 nm to 1650 nm |
| Optical Input Connector | FC/PC Connector |
| Electrical Input Connector | SMA Connector |
| Module Type | Dual-Channel Electrical and Optical Sampling Module |
| Rise Time | 17.5 ps (typical) |
| Input Impedance | 50 Ohms |
| Maximum Input Voltage | ±2 V DC + Peak AC |
Tektronix 80A06 Options:
- 80A06 - Opt. D1 - Calibration Data Reports
- 80A06 - Opt. R3 - Repair Service 3 Years
| Model | 80A06 |
|---|

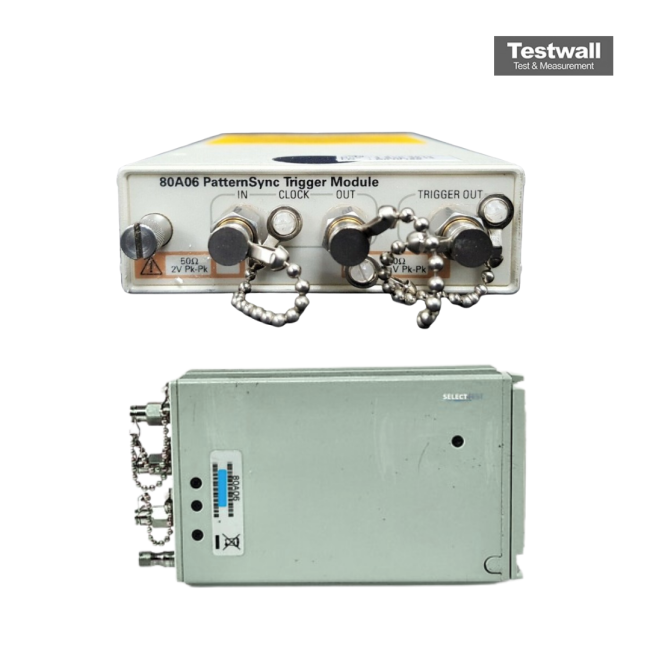

The Tektronix 80A06 PatternSync Trigger Module is essential for DSA8200 Series users implementing the 80SJNB Jitter, Noise, and BER Analysis software. It supports pattern lengths up to 2^23 bits and a user-supplied clock range of 150 MHz to 12.75 GHz. When combined with the 82A04 Phase Reference module, jitter floor performance reaches ≤200 fsRMS.
Ideal for advanced signal integrity analysis, the 80A06 enhances trigger performance in high-speed communication testing environments.
Testwall can supply the used Tektronix 80A06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80A06.
