Tektronix 80C01
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1620 nm |
| Optical Return Loss | > 27 dB |
| Maximum Input Power | +3 dBm average |
| Connector Type | FC/PC |
| Fiber Type | Single-mode |
| Bandwidth | DC to 20 GHz |
| Rise Time | < 17.5 ps |
| Responsivity | 0.65 A/W typical |
| Compatible Mainframe | CSA8000, TDS8000, DSA8200 Series |
| Module Type | Optical Sampling Module |
Tektronix 80C01 Options:
- 80C01 - CR - 622 and 2488 Mb/s clock recovery
| Model | 80C01 |
|---|

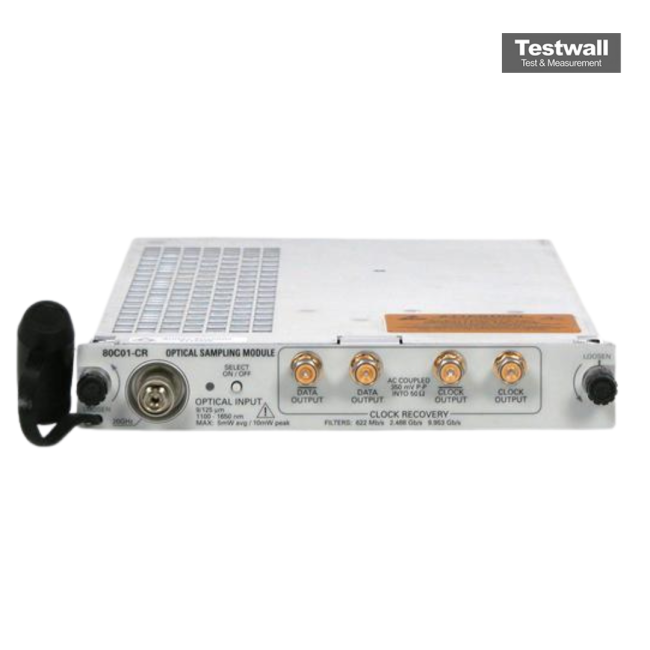

The Tektronix 80C01 module is designed for advanced optical waveform analysis with support for 622 Mb/s, 2.488 Gb/s, and 9.953 Gb/s data rates. Featuring a 20 GHz optical bandwidth, it operates across a wide wavelength range of 1100 nm to 1650 nm, ideal for long-wavelength signal testing. It includes a single-mode input, calibrated wavelengths at 1310 nm and 1550 nm, and an optional clock recovery for precise telecom evaluations.
Perfect for OC-12, OC-48, and OC-192 conformance testing, the Tektronix 80C01 ensures high-fidelity signal analysis with minimal optical return loss and high peak power tolerance.
Testwall can supply the used Tektronix 80C01, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C01.
