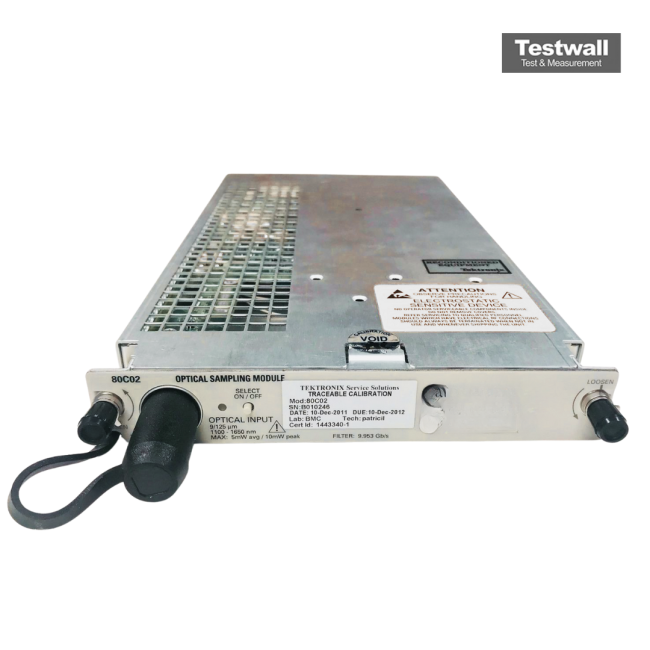

Tektronix 80C02
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 1100 nm to 1650 nm |
| Electrical Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Optical Input Connector | FC/PC |
| Compatible Sampling Oscilloscopes | CSA8000, TDS8000 Series |
| Responsivity | 0.75 A/W typical at 1550 nm |
| Maximum Input Power | +3 dBm average |
| Module Form Factor | Single-slot sampling module |
| Fiber Type Compatibility | Single-mode fiber |
| Operating Temperature | 0°C to +50°C |
Tektronix 80C02 Options:
- 80C02 - CR - 9.953 Gb/s clock recovery
- 80C02 - C3 - Calibration Service 3 Years
- 80C02 - C5 - Calibration Service 5 Years
- 80C02 - D1 - Calibration Data Report
- 80C02 - D3 - Calibration Data Report 3 Years (with Option C3)
- 80C02 - D5 - Calibration Data Report 5 Years (with Option C5)
- 80C02 - R3 - Repair Service 3 Years
- 80C02 - R5 - Repair Service 5 Years
| Model | 80C02 |
|---|
The Tektronix 80C02 EOS/ESD Protection Module safeguards electrical sampling inputs from electro-overstress (EOS) and electro-static discharge (ESD), critical for cable and TDR circuit board testing applications. It integrates with TDS8000, CSA8000, CSA11000, and CSA803 series sampling oscilloscopes.
Providing single-channel input protection, it supports high-speed electrical signal analysis and circuit board controlled impedance testing by plugging directly into and drawing power from the oscilloscope's mainframe.
Testwall can supply the used Tektronix 80C02, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C02.
