Tektronix

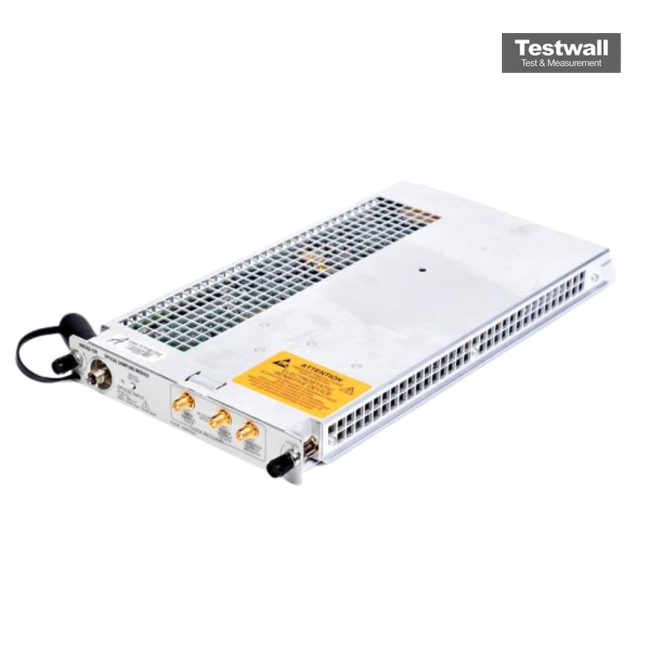

Tektronix 80C03
1250 nm to 1620 nm Wavelength Range
> 27 dB Optical Return Loss
+3 dBm average Maximum Input Power
Single-mode FC/PC Connector Type
DC to 20 GHz Bandwidth
| Attribute | Value |
|---|---|
| Wavelength Range | 1250 nm to 1620 nm |
| Optical Return Loss | > 27 dB |
| Maximum Input Power | +3 dBm average |
| Connector Type | Single-mode FC/PC |
| Bandwidth | DC to 20 GHz |
| Rise Time | < 17.5 ps |
| Responsivity | 0.6 A/W typical |
| Compatible Instruments | Tektronix DSA8200, CSA8000 Series Sampling Oscilloscopes |
| Module Type | Optical Sampling Module |
| Operating Temperature | 0°C to +50°C |
| Model | 80C03 |
|---|
The Tektronix 80C03 Optical Sampling Module offers 30 GHz optical bandwidth and supports 1310 nm and 1550 nm wavelengths, delivering low noise and high precision for optical signal analysis.
Designed for use with 80GHz sampling oscilloscopes, it's ideal for SONET/SDH and Ethernet network testing with excellent timing resolution.
Testwall can supply the used Tektronix 80C03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C03.
