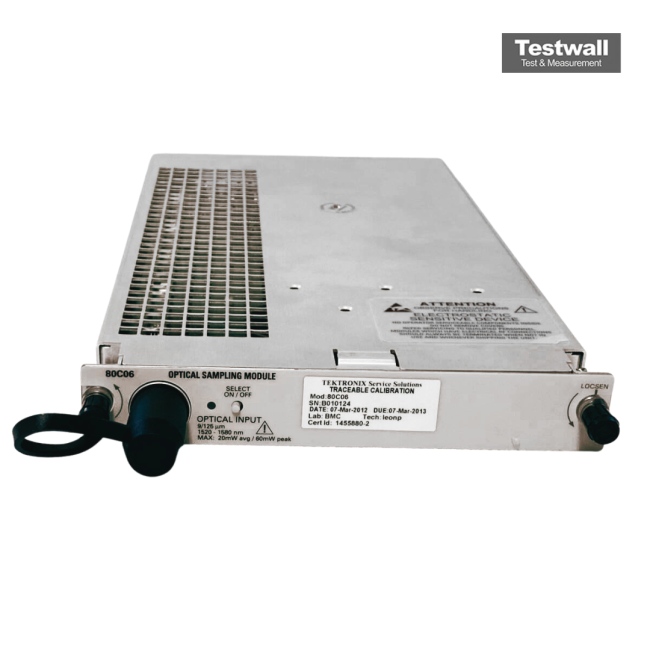

Tektronix 80C06
1260 nm to 1620 nm Wavelength Range
FC/PC Optical Input Connector
20 GHz Electrical Bandwidth
+3 dBm average, +10 dBm peak Maximum Input Power
0.6 A/W typical at 1550 nm Responsivity
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1620 nm |
| Optical Input Connector | FC/PC |
| Electrical Bandwidth | 20 GHz |
| Maximum Input Power | +3 dBm average, +10 dBm peak |
| Responsivity | 0.6 A/W typical at 1550 nm |
| Optical Return Loss | >27 dB |
| Compatible Sampling Oscilloscope Mainframes | CSA8000, DSA8200 series |
| Module Slots Required | 1 slot |
| Rise Time | 17.5 ps typical |
| Operating Temperature | 0°C to +50°C |
| Model | 80C06 |
|---|
The Tektronix 80C06 optical sampling module offers 50 GHz bandwidth, compatible with CSA8000 and TDS8000 systems. It supports OC-768/STM-256 signal analysis and handles input powers up to 20 mW, enhancing signal-to-noise ratio.
Ideal for 40 Gb/s telecom signals, the 80C06 performs automated waveform measurements, eye pattern, and pulse shape analysis for advanced optical component development.
Testwall can supply the used Tektronix 80C06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C06.
