Tektronix 80C07B
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1620 nm |
| Optical Bandwidth | DC to 20 GHz |
| Optical Input Connector | FC/PC |
| Maximum Input Power | +10 dBm average, +23 dBm peak |
| Sensitivity (Typical) | -14 dBm at 10 GHz |
| O/E Conversion | Single-Mode Fiber Optic to Electrical |
| Compatible Instruments | Tektronix DSA8300, CSA8000B, TDS8000B Series Sampling Oscilloscopes |
| Module Type | Optical Sampling Module |
| Fiber Mode | Single-Mode |
| Operating Temperature | 0°C to +50°C |
| Model | 80C07B |
|---|

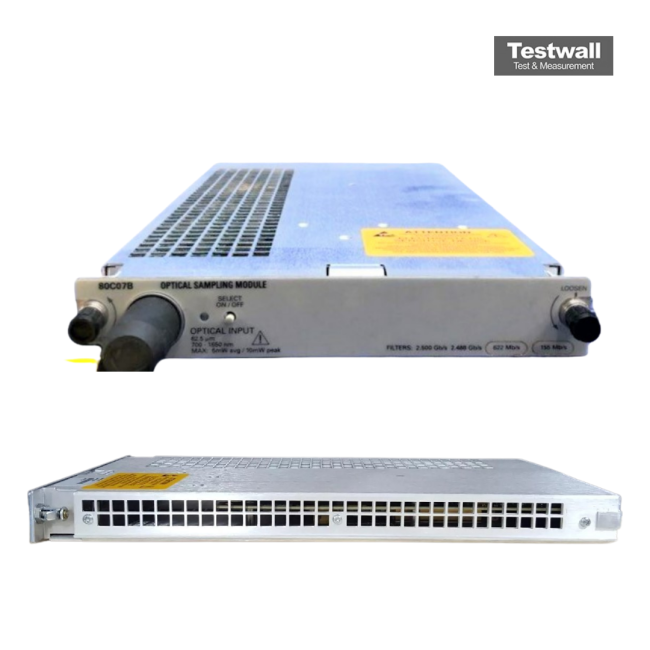

The Tektronix 80C07B Optical Sampling Module supports a broad wavelength range of 700 to 1650 nm and is optimized for testing datacom/telecom signals from 125 to 2500 Mb/s. It includes an amplified O/E converter for superior signal-to-noise performance, enabling precise analysis of low-power optical signals.
This module can be optionally configured with clock recovery for data rates of 125, 155, 622, 1063, 1250, 2125, 2488, 2500, and 2666 Mb/s, making it ideal for versatile network testing applications.
Testwall can supply the used Tektronix 80C07B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C07B.
