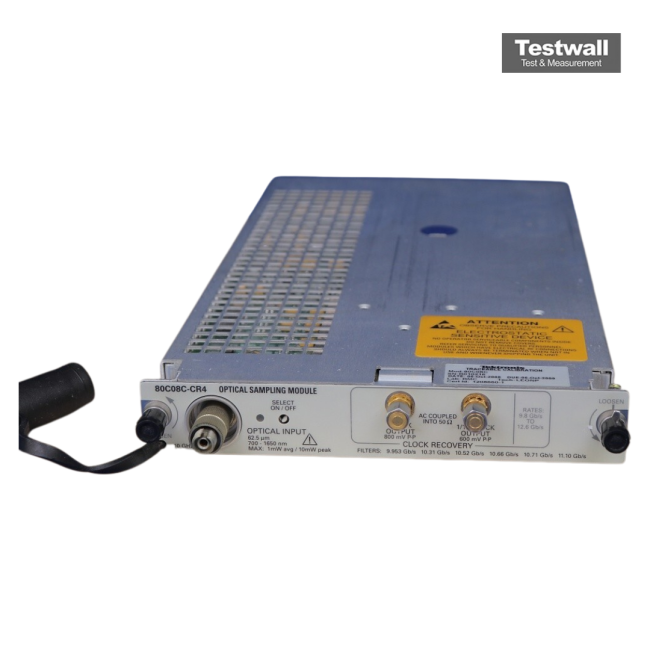

Tektronix 80C08C
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 1260 nm to 1620 nm |
| Electrical Bandwidth | 30 GHz |
| Optical Input Connector | Single-mode FC/PC |
| Maximum Input Power | +3 dBm average, +10 dBm peak |
| Conversion Gain | 350 V/W typical |
| Compatible Sampling Modules | Designed for use with Tektronix DSA8300 and CSA8000B sampling oscilloscopes |
| Optical Return Loss | >27 dB |
| Rise Time | 11.7 ps typical |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Tektronix 80C08C Options:
- 80C08C - CR1 - 9.953, 10.31 Gb/s clock recovery
- 80C08C - CR2 - 10.31, 10.52 Gb/s clock recovery
- 80C08C - CR4 - Continuous rate clock recovery supporting any standard or user-definable rate in the range from 9.8 to 12.6 Gb/s
- 80C08C - C3 - Calibration Service 3 Years
- 80C08C - C5 - Calibration Service 5 Years
- 80C08C - D1 - Calibration Data Report
- 80C08C - D3 - Calibration Data Report 3 Years (with Option C3)
- 80C08C - D5 - Calibration Data Report 5 Years (with Option C5)
- 80C08C - R3 - Repair Service 3 Years
- 80C08C - R5 - Repair Service 5 Years
| Model | 80C08C |
|---|
The Tektronix 80C08C Optical Sampling Module supports high-performance testing across 700–1650 nm wavelengths with >10 GHz bandwidth, ideal for 10 Gb/s telecom and datacom standards. It features ER Calibrated measurement, low-noise, high optical sensitivity, and supports integrated clock recovery from 9.8 to 12.6 Gb/s.
It is compatible with 10 GbE LAN/WAN, FEC, Fibre Channel, and other telecom/datacom standards, offering flexible conformance and performance testing options.
Testwall can supply the used Tektronix 80C08C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80C08C.
