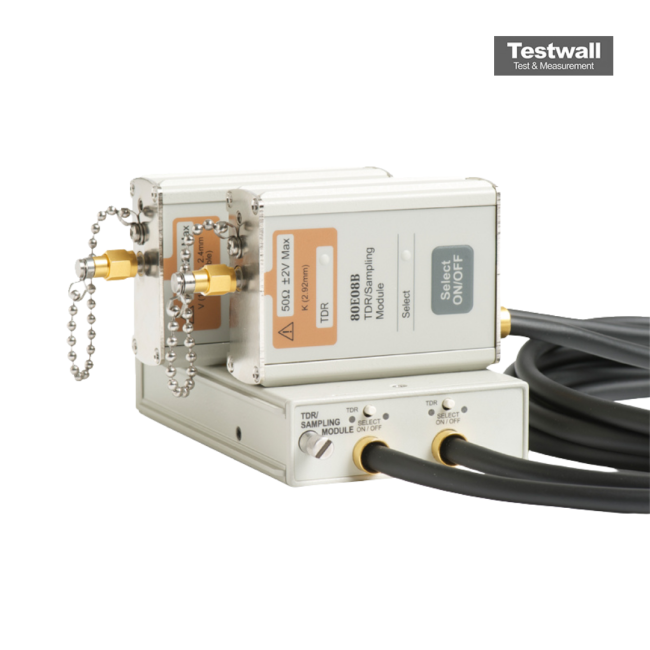

Tektronix 80E08B
Remote Electrical Sampling Module w/ TDR, Dual Ch., 30 GHz
20 GHz Bandwidth
17.5 ps Rise Time
50 Ω Input Impedance
±2 V (DC + Peak AC) Maximum Input Voltage
10 mV/div to 200 mV/div Voltage Sensitivity Range
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω |
| Maximum Input Voltage | ±2 V (DC + Peak AC) |
| Voltage Sensitivity Range | 10 mV/div to 200 mV/div |
| Number of Channels | 2 |
| Connector Type | 2.92 mm (K-connector) |
| Compatible Mainframes | DSA8300, CSA8000B, TDS8000B |
| Timebase Range | 10 ps/div to 1 ks/div (mainframe dependent) |
| Operating Temperature | 0°C to +50°C |
| Model | 80E08B |
|---|
The Tektronix 80E08B is a dual-channel Time Domain Reflectometry (TDR) sampling module featuring 18 ps incident and 15 ps reflected rise time, ideal for high-precision testing applications.
Each channel supports independent step polarity, enabling differential, common mode, and S-parameter testing for coupled or isolated lines using selectable 30/20 GHz bandwidth.
Testwall can supply the used Tektronix 80E08B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E08B.
