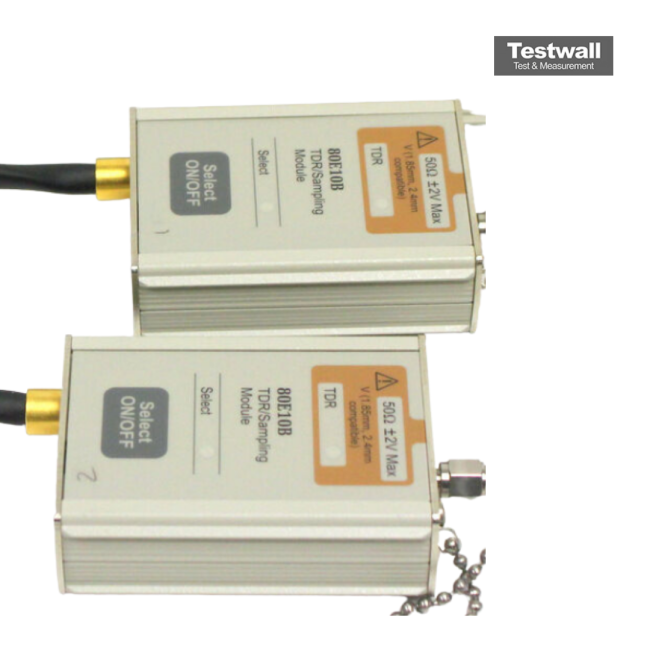

Tektronix 80E10B
Remote Electrical Sampling Module w/ TDR, Dual Ch., 50 GHz
20 GHz Bandwidth
17.5 ps Rise Time
50 Ω Input Impedance
±200 mV (with 50 Ω input) Voltage Range
2.92 mm (K-connector) Connector Type
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω |
| Voltage Range | ±200 mV (with 50 Ω input) |
| Connector Type | 2.92 mm (K-connector) |
| Compatible Mainframe | DSA8300, CSA8000B, TDS8000B Series Sampling Oscilloscopes |
| Number of Channels | 2 |
| Timebase Range | 10 ps/div to 1 ks/div |
| Maximum Input Voltage | ±2 V DC + Peak AC |
| Operating Temperature | 0°C to +50°C |
Tektronix 80E10B Options:
- 80E10B - Opt. C3 - Calibration Service 3 Years
- 80E10B - Opt. C5 - Calibration Service 5 Years
- 80E10B - Opt. D1 - Calibration Data Report
- 80E10B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- 80E10B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- 80E10B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- 80E10B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- 80E10B - Opt. R3 - Repair Service 3 Years (including warranty)
- 80E10B - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | 80E10B |
|---|
The Tektronix 80E10B Remote Electrical Module is a dual-channel TDR sampling head with 12 ps incident and 15 ps reflected rise time, ideal for high-performance impedance and S-parameter testing.
It supports true differential, common mode, and single-ended measurements for detailed fault isolation and transmission line characterization.
Testwall can supply the used Tektronix 80E10B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80E10B.
