Tektronix AA501
| Attribute | Value |
|---|---|
| Instrument Type | Distortion Analyzer |
| Frequency Range | 10 Hz to 100 kHz |
| THD Measurement Range | 0.001% to 100% |
| Input Voltage Range | 100 mV to 300 V RMS |
| Input Impedance | 100 kΩ |
| Residual Distortion | Less than 0.0008% THD |
| Display Type | Analog Meter with Digital Frequency Display |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 133 mm x 213 mm x 448 mm (5.25 in x 8.38 in x 17.63 in) |
Tektronix AA501 Options:
- AA501 - 01 - Adds SMPTE/DIN intermodulation distortion and CCIF two-tone difference frequency distortion measurements
| Model | AA501 |
|---|

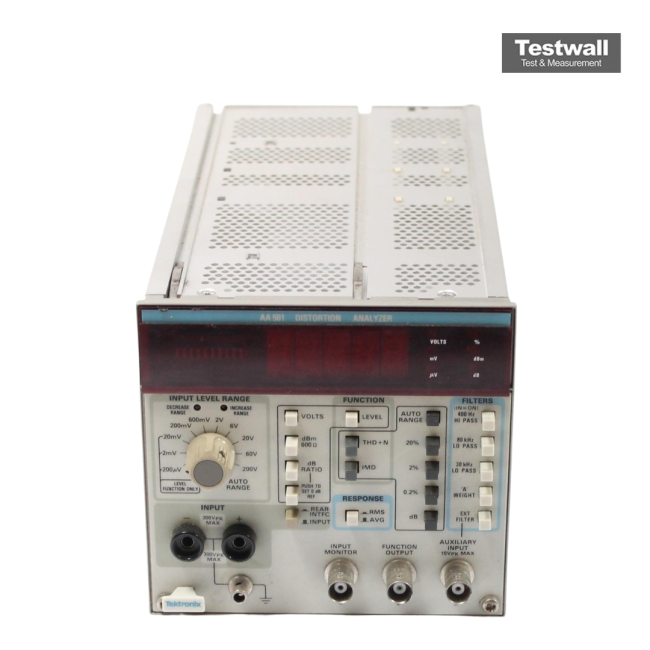

The Tektronix AA501 Distortion Analyzer offers automatic level, THD+N measurement, and fundamental nulling for seamless audio analysis from 10 Hz to 100 kHz. It features four weighting filters, 100 kΩ input impedance, and harmonic detection up to 300 kHz. RMS‑responding measurements and optional intermodulation testing enhance its capabilities.
Ideal for audio testing, the AA501 simplifies signal analysis with autoranging, analog‑style bar graph, and external filter integration. Residual THD+N is below ‑90 dB, ensuring precision.
Testwall can supply the used Tektronix AA501, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AA501.
