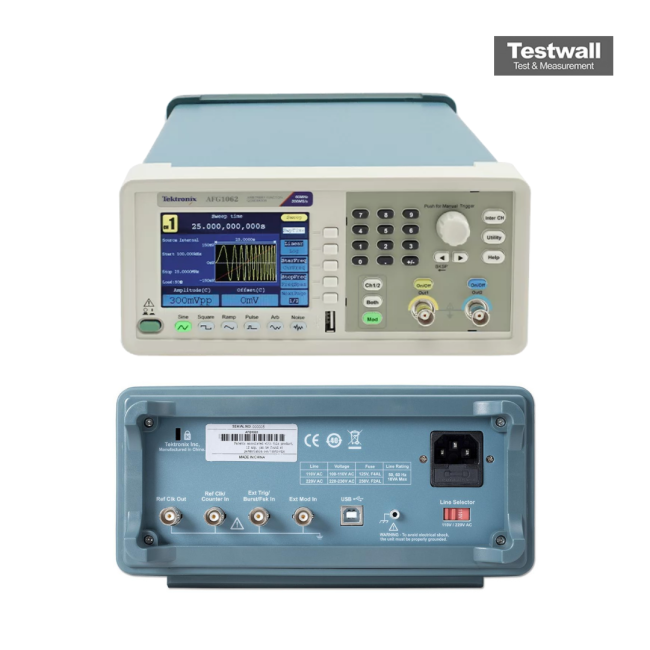

Tektronix AFG1062
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 60 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, Cardiac, and Arbitrary |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω), 2 mVpp to 20 Vpp (into High Z) |
| Sample Rate | 300 MS/s |
| Arbitrary Waveform Memory Depth | 128K points per channel |
| Vertical Resolution | 14 bits |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, and Sweep |
| Display | 3.5-inch color LCD display |
Tektronix AFG1062 Options:
- AFG1062 - A0 - North America power plug (115 V, 60 Hz)
- AFG1062 - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG1062 - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG1062 - A3 - Australia power plug (240 V, 50 Hz)
- AFG1062 - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG1062 - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG1062 - A10 - China power plug (50 Hz)
- AFG1062 - A11 - India power plug (50 Hz)
- AFG1062 - A12 - Brazil power plug (60 Hz)
- AFG1062 - A99 - No power cord
- AFG1062 - C3 - Calibration Service 3 Years
- AFG1062 - C5 - Calibration Service 5 Years
| Model | AFG1062 |
|---|
The Tektronix AFG1062 is a dual-channel Arbitrary Function Generator with 60 MHz bandwidth, offering up to 10 Vp-p amplitude and a 125 MS/s sampling rate for precise signal generation. It includes 50 built-in waveforms, a 200 MHz frequency counter, and supports user-defined waveforms with up to 8,192-point memory and 64-MByte internal storage.
The device features a 3.95-inch TFT LCD, USB interface, intuitive controls, and PC software compatibility, making it ideal for laboratory and educational environments. It is also compatible with TekSmartLab™.
Testwall can supply the used Tektronix AFG1062, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG1062.
