Tektronix

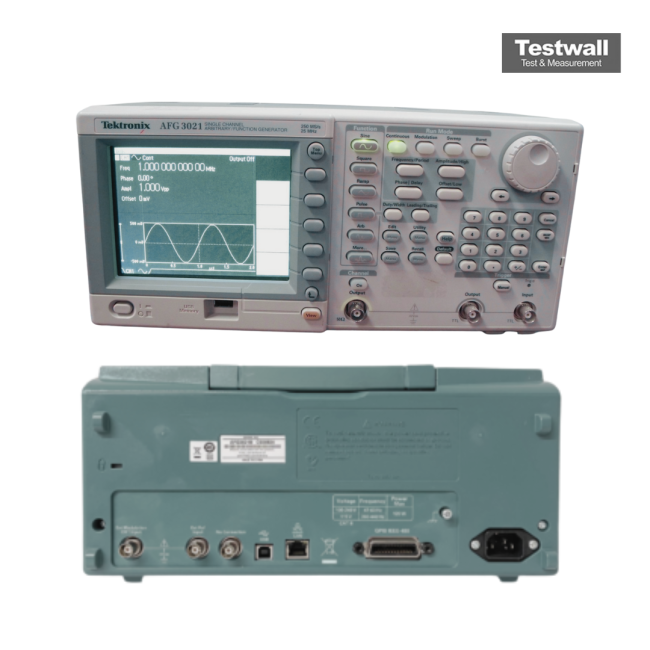

Tektronix AFG3021
General Purpose Instruments
1 Number of Channels
1 µHz to 25 MHz Frequency Range
Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Arbitrary Waveform Types
128K points per channel Arbitrary Waveform Memory
250 MS/s Sample Rate
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Frequency Range | 1 µHz to 25 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Arbitrary |
| Arbitrary Waveform Memory | 128K points per channel |
| Sample Rate | 250 MS/s |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Vertical Resolution | 14 bits |
| Modulation Types | AM, FM, PM, FSK, PWM |
| Output Impedance | 50 Ω |
| Connectivity | USB, GPIB (optional), LAN (optional) |
Tektronix AFG3021 Options:
- AFG3021 - A0 - North America power
- AFG3021 - A1 - Universal EURO power
- AFG3021 - A2 - United Kingdom power
- AFG3021 - A3 - Australia power
- AFG3021 - A5 - Switzerland power
- AFG3021 - A6 - Japan power
- AFG3021 - A10 - China power
- AFG3021 - A99 - No power cord or AC adapter
- AFG3021 - L0 - English manual (071-1631-xx)
- AFG3021 - L1 - French manual (071-1632-xx)
- AFG3021 - L2 - Italian manual (071-1669-xx)
- AFG3021 - L3 - German manual (071-1633-xx)
- AFG3021 - L4 - Spanish manual (071-1670-xx)
- AFG3021 - L5 - Japanese manual (071-1634-xx)
- AFG3021 - L7 - Simple Chinese manual (071-1635-xx)
- AFG3021 - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3021 - L9 - Korean manual (071-1637-xx)
- AFG3021 - L10 - Russian manual (071-1638-xx)
- AFG3021 - L99 - No manual
- AFG3021 - C3 - Calibration Service 3 Years
- AFG3021 - C5 - Calibration Service 5 Years
- AFG3021 - D1 - Calibration Data Report
- AFG3021 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3021 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3021 - R5 - Repair Service 5 Years
| Model | AFG3021 |
|---|
The Tektronix AFG3021 offers 20 MHz frequency range, 250 MS/s sample rate, and arbitrary waveform support, ensuring precise and flexible signal generation for advanced electronics testing.
Ideal for design, testing, and verification tasks, it provides an intuitive front panel interface and USB connectivity for ease of operation.
Testwall can supply the used Tektronix AFG3021, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3021.
