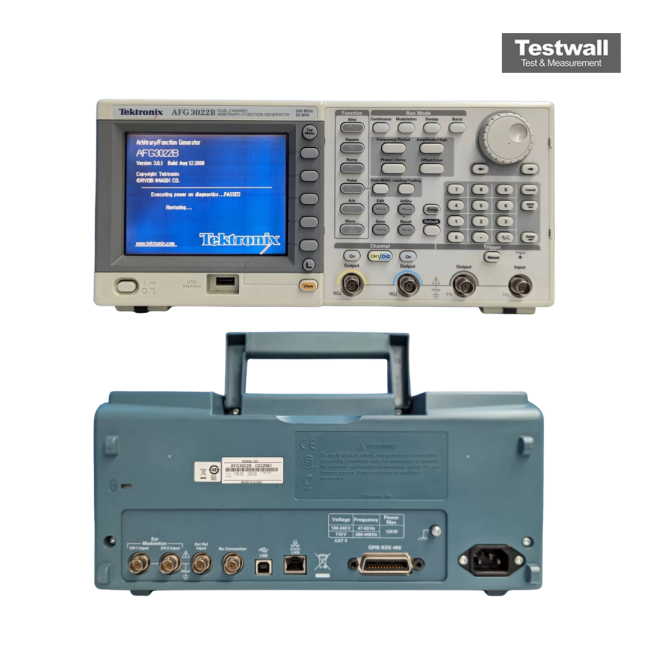

Tektronix AFG3022B
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 25 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory | 128 K points per channel |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Output Impedance | 50 Ω |
| Connectivity | USB, GPIB, and LAN (LXI compliant) |
| Model | AFG3022B |
|---|
The Tektronix AFG3022B is a high-performance dual-channel function/arbitrary waveform generator featuring 25 MHz bandwidth per channel, 14-bit amplitude resolution, and both synchronized and independent signal outputs. Equipped with USB host/device and GPIB interfaces, it supports complex waveform generation with built-in modulation and sweep capabilities.
Ideal for design and testing environments, it facilitates precise waveform simulation and modulation tasks with high accuracy and operational versatility.
Testwall can supply the used Tektronix AFG3022B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3022B.
