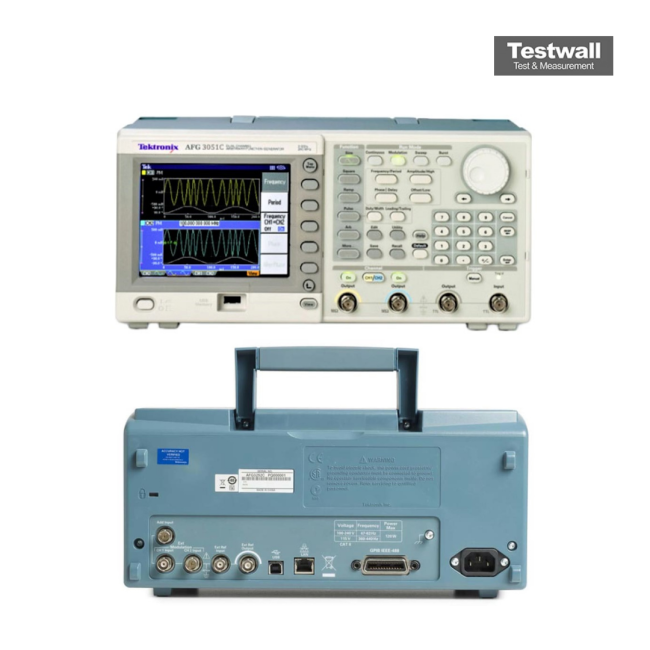

Tektronix AFG3051C
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 50 MHz |
| Number of Channels | 1 Channel |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Arbitrary |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory | 128K points per channel |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Display | 3.5-inch Color LCD Display |
Tektronix AFG3051C Options:
- AFG3051C - Opt. A0 - North America power plug (115 V, 60 Hz)
- AFG3051C - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3051C - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3051C - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AFG3051C - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3051C - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3051C - Opt. A10 - China power plug (50 Hz)
- AFG3051C - Opt. A11 - India power plug (50 Hz)
- AFG3051C - Opt. A12 - Brazil power plug (60 Hz)
- AFG3051C - Opt. A99 - No power cord
- AFG3051C - Opt. L0 - English manual (071-1631-xx)
- AFG3051C - Opt. L1 - French manual (071-1632-xx)
- AFG3051C - Opt. L2 - Italian manual (071-1669-xx)
- AFG3051C - Opt. L3 - German manual (071-1633-xx)
- AFG3051C - Opt. L4 - Spanish manual (071-1670-xx)
- AFG3051C - Opt. L5 - Japanese manual (071-1634-xx)
- AFG3051C - Opt. L6 - Portuguese manual (071-3042-xx)
- AFG3051C - Opt. L7 - Simple Chinese manual (071-1635-xx)
- AFG3051C - Opt. L8 - Traditional Chinese manual (071-1636-xx)
- AFG3051C - Opt. L9 - Korean manual (071-1637-xx)
- AFG3051C - Opt. L10 - Russian manual (071-1638-xx)
- AFG3051C - Opt. L99 - No manual
- AFG3051C - Opt. C3 - Calibration Service 3 Years
- AFG3051C - Opt. C5 - Calibration Service 5 Years
- AFG3051C - Opt. D1 - Calibration Data Report
- AFG3051C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3051C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3051C - Opt. R5 - Repair Service 5 Years (including warranty)
- AFG3051C - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period; 5-year period starts at time of instrument purchase)
- AFG3051C - Opt. SILV400 - Standard warranty extended to 5 years
| Model | AFG3051C |
|---|
The Tektronix AFG3051C offers 12 standard waveforms, a 128 K-point arbitrary waveform generator, and up to 50 MHz output frequency with ultra‑low THD. Users can independently adjust pulse edges and add external signals. The device features a ±1 ppm/year stable time base and an intuitive color TFT LCD display for instant waveform insight.
With a single channel, burst mode up to 25 MHz, and seamless waveform import from Tektronix oscilloscopes, it’s designed for versatile signal testing and generation tasks.
Testwall can supply the used Tektronix AFG3051C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3051C.
