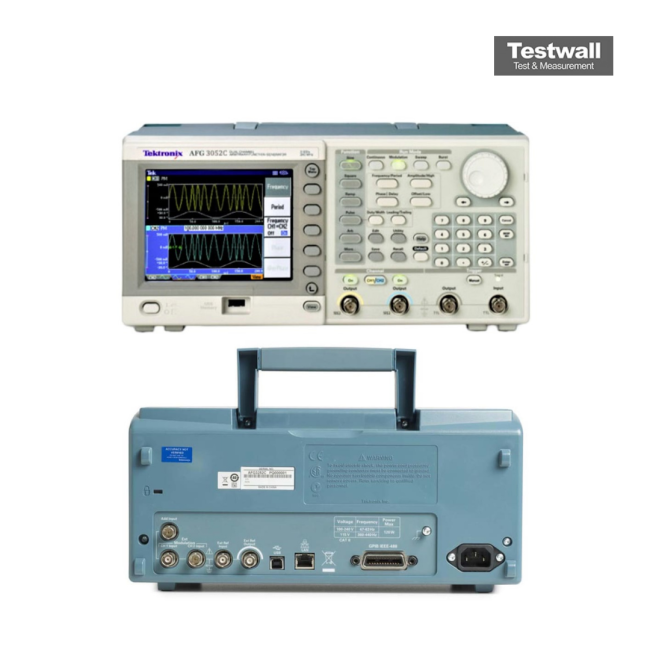

Tektronix AFG3052C
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Frequency Range | 1 µHz to 50 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, Sinc, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and Arbitrary |
| Arbitrary Waveform Memory Depth | 128K points per channel |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14 bits |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω); 2 mVpp to 20 Vpp (into open circuit) |
| Output Impedance | 50 Ω |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Connectivity/Interface | USB, GPIB, and LAN (LXI Core 2011) |
Tektronix AFG3052C Options:
- AFG3052C - Opt. A0 - North America power plug (115 V, 60 Hz)
- AFG3052C - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3052C - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3052C - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AFG3052C - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3052C - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3052C - Opt. A10 - China power plug (50 Hz)
- AFG3052C - Opt. A11 - India power plug (50 Hz)
- AFG3052C - Opt. A12 - Brazil power plug (60 Hz)
- AFG3052C - Opt. A99 - No power cord
- AFG3052C - Opt. L0 - English manual (071-1631-xx)
- AFG3052C - Opt. L1 - French manual (071-1632-xx)
- AFG3052C - Opt. L2 - Italian manual (071-1669-xx)
- AFG3052C - Opt. L3 - German manual (071-1633-xx)
- AFG3052C - Opt. L4 - Spanish manual (071-1670-xx)
- AFG3052C - Opt. L5 - Japanese manual (071-1634-xx)
- AFG3052C - Opt. L6 - Portuguese manual (071-3042-xx)
- AFG3052C - Opt. L7 - Simple Chinese manual (071-1635-xx)
- AFG3052C - Opt. L8 - Traditional Chinese manual (071-1636-xx)
- AFG3052C - Opt. L9 - Korean manual (071-1637-xx)
- AFG3052C - Opt. L10 - Russian manual (071-1638-xx)
- AFG3052C - Opt. L99 - No manual
- AFG3052C - Opt. C3 - Calibration Service 3 Years
- AFG3052C - Opt. C5 - Calibration Service 5 Years
- AFG3052C - Opt. D1 - Calibration Data Report
- AFG3052C - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3052C - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3052C - Opt. R5 - Repair Service 5 Years (including warranty)
- AFG3052C - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
- AFG3052C - Opt. SILV400 - Standard warranty extended to 5 years
| Model | AFG3052C |
|---|
The Tektronix AFG3052C Arbitrary/Function Generator offers 12 standard waveforms, up to 128K-length arbitrary waveform generation, dual channels, and up to 50 MHz output frequency. It features a stable time base with ±1 ppm/year drift, color TFT LCD display, and independent control of pulse edges for enhanced signal precision.
This generator supports waveform importing via PC software, external signal addition, and operation across wide frequency ranges, making it ideal for complex test setups.
Testwall can supply the used Tektronix AFG3052C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3052C
