Tektronix AFG3101
| Attribute | Value |
|---|---|
| Frequency Range | 1 µHz to 100 MHz |
| Number of Channels | 1 |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and 12 predefined waveforms |
| Amplitude Range | 1 mVp-p to 10 Vp-p (into 50 Ω) |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory | 128 K points per channel |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, and Burst |
| Output Impedance | 50 Ω |
| Connectivity | USB, GPIB, and LAN (LXI compliant) |
Tektronix AFG3101 Options:
- AFG3101 - A0 - North America power
- AFG3101 - A1 - Universal EURO power
- AFG3101 - A2 - United Kingdom power
- AFG3101 - A3 - Australia power
- AFG3101 - A5 - Switzerland power
- AFG3101 - A6 - Japan power
- AFG3101 - A10 - China power
- AFG3101 - A99 - No power cord or AC adapter
- AFG3101 - L0 - English manual (071-1631-xx)
- AFG3101 - L1 - French manual (071-1632-xx)
- AFG3101 - L2 - Italian manual (071-1669-xx)
- AFG3101 - L3 - German manual (071-1633-xx)
- AFG3101 - L4 - Spanish manual (071-1670-xx)
- AFG3101 - L5 - Japanese manual (071-1634-xx)
- AFG3101 - L7 - Simple Chinese manual (071-1635-xx)
- AFG3101 - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3101 - L9 - Korean manual (071-1637-xx)
- AFG3101 - L10 - Russian manual (071-1638-xx)
- AFG3101 - L99 - No manual
- AFG3101 - C3 - Calibration Service 3 Years
- AFG3101 - C5 - Calibration Service 5 Years
- AFG3101 - D1 - Calibration Data Report
- AFG3101 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3101 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3101 - R5 - Repair Service 5 Years
| Model | AFG3101 |
|---|

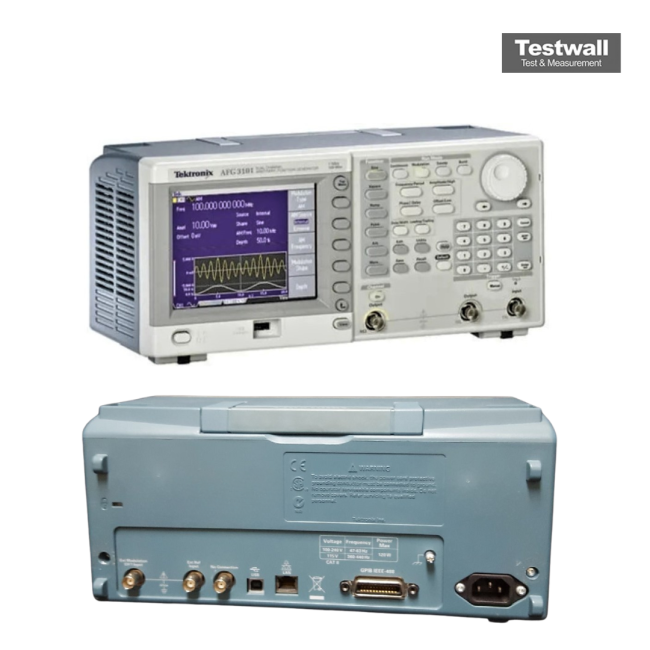

The Tektronix AFG3101 is a high-performance single-channel function generator with a 100 MHz sine wave output and a 1 GS/s sampling rate, ideal for precise analog signal simulations in communications and industrial electronics testing. It features USB and GPIB interfaces and supports advanced sweep and burst modes for versatile waveform control.
This device is suitable for signal stimulation, circuit diagnostics, and component testing where high signal fidelity and flexible modulation are crucial.
Testwall can supply the used Tektronix AFG3101, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3101.
