Tektronix AFG31022
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 25 MHz |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Waveform Memory | 131,072 points per channel |
| Output Amplitude | 1 mVpp to 10 Vpp (into 50Ω) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Gaussian, Lorentz, Haversine, Sinc, Exponential Rise/Decay, Noise, PRBS |
| Display | 9-inch capacitive touchscreen display |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Frequency Resolution | 1 µHz |
Tektronix AFG31022 Options:
- AFG31022 - MEM - Extends arbitrary waveform memory to 128 Mpts/ch in Advanced mode
- AFG31022 - SEQ - Enables Sequence, Triggered and Gated modes in Advanced mode
- AFG31022 - AUP-AFG3SEQ-2 - Enables Sequence, Triggered, and Gated modes in Advanced mode (node locked license, two channel)
- AFG31022 - AUP-AFG3MEM-2 - Extends arb memory to 128 Mpts/ch in Advanced mode (node locked license, two channel)
- AFG31022 - AUP-AFG3BW25T50-2 - Bandwidth extension from 25 MHz to 50 MHz (two channel)
- AFG31022 - AUP-AFG3BW25T100-2 - Bandwidth extension from 25 MHz to 100 MHz (two channel)
- AFG31022 - AUP-AFG3BW50T100-2 - Bandwidth extension from 50 MHz to 100 MHz (two channel)
- AFG31022 - AUP-AFG3BW150T250-2 - Bandwidth extension from 150 MHz to 250 MHz (two channel)
- AFG31022 - A0 - North America power plug (115 V, 60 Hz)
- AFG31022 - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG31022 - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG31022 - A3 - Australia power plug (240 V, 50 Hz)
- AFG31022 - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG31022 - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG31022 - A10 - China power plug (50 Hz)
- AFG31022 - A11 - India power plug (50 Hz)
- AFG31022 - A12 - Brazil power plug (60 Hz)
- AFG31022 - A99 - No power cord
- AFG31022 - L0 - English front panel overlay (default)
- AFG31022 - L1 - French front panel overlay
- AFG31022 - L2 - Italian front panel overlay
- AFG31022 - L3 - German front panel overlay
- AFG31022 - L4 - Spanish front panel overlay
- AFG31022 - L5 - Japanese front panel overlay
- AFG31022 - L6 - Portuguese front panel overlay
- AFG31022 - L7 - Simplified Chinese front panel overlay
- AFG31022 - L8 - Traditional Chinese front panel overlay
- AFG31022 - L9 - Korean front panel overlay
- AFG31022 - L10 - Russian front panel overlay
- AFG31022 - L99 - No front panel overlay
- AFG31022 - C3 - Calibration Service 3 Years
- AFG31022 - C5 - Calibration Service 5 Years
- AFG31022 - D1 - Calibration Data Report
- AFG31022 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG31022 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG31022 - R5 - Repair Service 5 Years (including warranty)
- AFG31022 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
- AFG31022 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
| Model | AFG31022 |
|---|

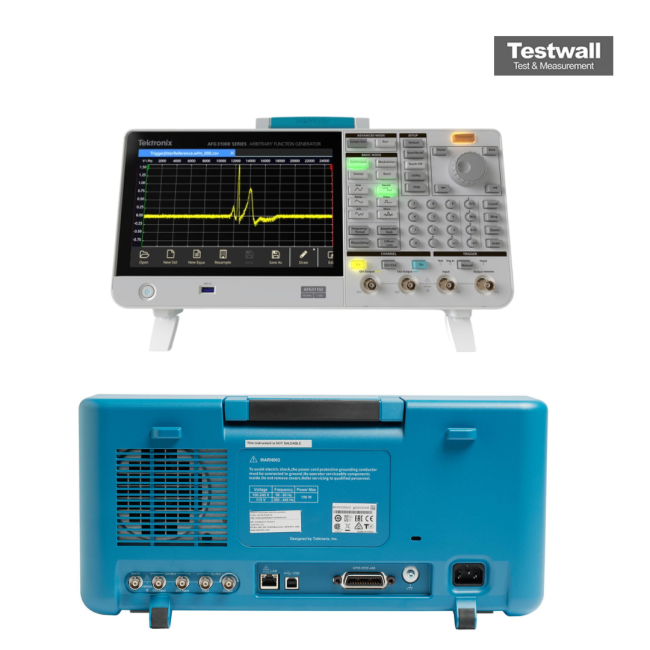

The Tektronix AFG31022 is a 2‑channel Arbitrary Function Generator offering a 25 MHz bandwidth, 250 MS/s sample rate, 16 Mpts per channel memory, and 14‑bit vertical resolution. It delivers output up to 10 Vpp into 50 Ω with precise signal fidelity. InstaView™ technology ensures real‑time waveform visibility at the DUT without oscilloscopes or probes.
Ideal for complex signal design, it includes sequencing for up to 256 steps and a smart 9‑inch capacitive touchscreen with intuitive shortcuts. ArbBuilder allows efficient waveform creation and editing.
Testwall can supply the used Tektronix AFG31022, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31022.
