Tektronix
Tektronix AFG31051
Arbitrary Function Generator, 50 MHz 1 Ch., 500 MS/s
1 Number of Channels
1 µHz to 50 MHz Frequency Range
250 MS/s Sample Rate
14-bit Vertical Resolution
131,072 points per channel Waveform Memory
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Frequency Range | 1 µHz to 50 MHz |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Waveform Memory | 131,072 points per channel |
| Output Amplitude | 1 mVpp to 10 Vpp (into 50 Ω) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sin(x)/x, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and more |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Display | 5-inch capacitive touchscreen (800 x 480 resolution) |
| Connectivity | USB Host, USB Device, LAN (LXI Core 2011) |
Tektronix AFG31051 Options:
- AFG31051 - MEM - Extends arbitrary waveform memory to 128 Mpts/ch in Advanced mode
- AFG31051 - SEQ - Enables Sequence, Triggered and Gated modes in Advanced mode
- AFG31051 - AUP-AFG3SEQ-1 - Enables Sequence, Triggered, and Gated modes in Advanced mode (node locked license, one channel)
- AFG31051 - AUP-AFG3MEM-1 - Extends arb memory to 128 Mpts/ch in Advanced mode (node locked license, one channel)
- AFG31051 - AUP-AFG3BW25T50-1 - Bandwidth extension from 25 MHz to 50 MHz (node locked license, one channel)
- AFG31051 - AUP-AFG3BW25T100-1 - Bandwidth extension from 25 MHz to 100 MHz (node locked license, one channel)
- AFG31051 - AUP-AFG3BW50T100-1 - Bandwidth extension from 50 MHz to 100 MHz (node locked license, one channel)
- AFG31051 - AUP-AFG3BW150T250-1 - Bandwidth extension from 150 MHz to 250 MHz (node locked license, one channel)
- AFG31051 - A0 - North America power plug (115 V, 60 Hz)
- AFG31051 - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG31051 - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG31051 - A3 - Australia power plug (240 V, 50 Hz)
- AFG31051 - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG31051 - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG31051 - A10 - China power plug (50 Hz)
- AFG31051 - A11 - India power plug (50 Hz)
- AFG31051 - A12 - Brazil power plug (60 Hz)
- AFG31051 - A99 - No power cord
- AFG31051 - L0 - English front panel overlay (default)
- AFG31051 - L1 - French front panel overlay
- AFG31051 - L2 - Italian front panel overlay
- AFG31051 - L3 - German front panel overlay
- AFG31051 - L4 - Spanish front panel overlay
- AFG31051 - L5 - Japanese front panel overlay
- AFG31051 - L6 - Portuguese front panel overlay
- AFG31051 - L7 - Simplified Chinese front panel overlay
- AFG31051 - L8 - Traditional Chinese front panel overlay
- AFG31051 - L9 - Korean front panel overlay
- AFG31051 - L10 - Russian front panel overlay
- AFG31051 - L99 - No front panel overlay
- AFG31051 - C3 - Calibration Service 3 Years
- AFG31051 - C5 - Calibration Service 5 Years
- AFG31051 - D1 - Calibration Data Report
- AFG31051 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG31051 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG31051 - R5 - Repair Service 5 Years (including warranty)
- AFG31051 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
- AFG31051 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
| Model | AFG31051 |
|---|

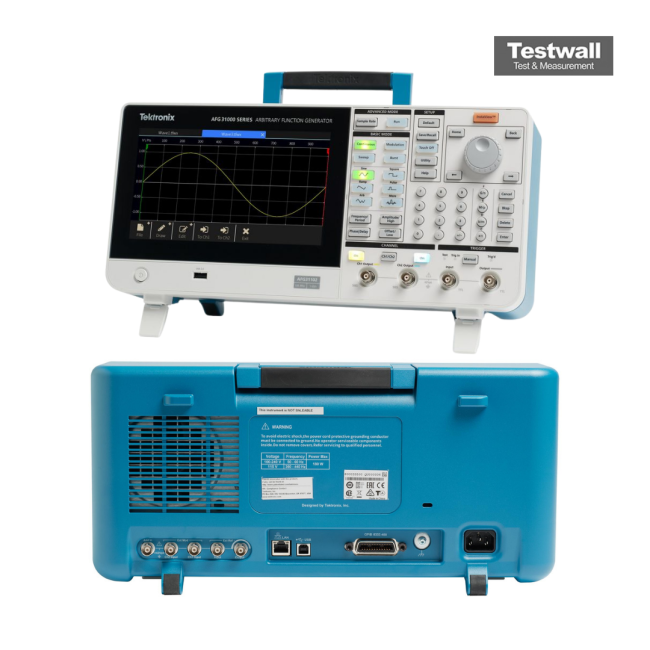

The Tektronix AFG31051 is a 1-channel arbitrary function generator with a 50 MHz bandwidth, 500 MSa/s sample rate, 16 Mpts arb memory, and 14-bit vertical resolution. It delivers 10Vpp to 50Ω output and includes a traceable calibration certificate as standard.
Features include InstaView™ technology for real-time waveform visibility at the DUT, sequencing for complex waveforms up to 256 steps, a 9-inch touch screen for intuitive operation, and built-in ArbBuilder for waveform creation and editing.
Testwall can supply the used Tektronix AFG31051, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31051.
