Tektronix AFG31101
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Maximum Frequency | 100 MHz |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 16-bit |
| Waveform Memory Length | 131,072 points (128 K) |
| Output Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω) |
| Output Impedance | 50 Ω |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, Noise, DC, and more than 15 predefined waveforms |
| Display | 5-inch capacitive touchscreen LCD |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Model | AFG31101 |
|---|

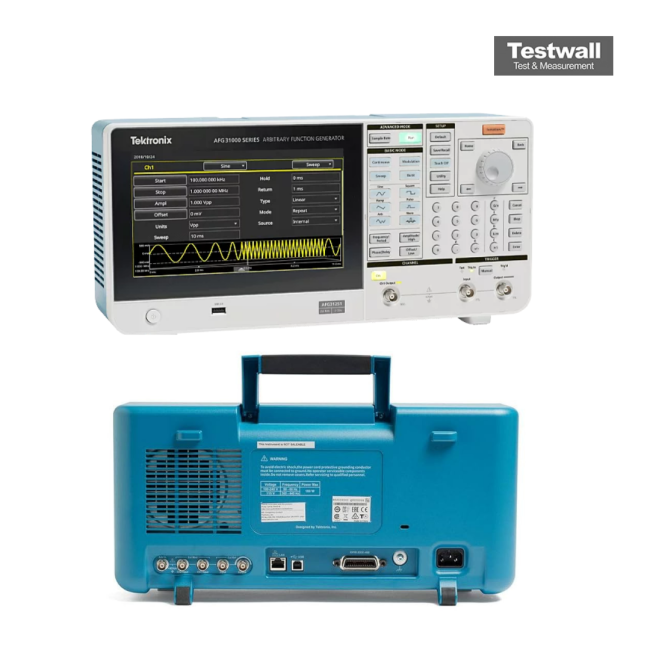

The Tektronix AFG31101 Arbitrary Function Generator features a single analog channel with 100 MHz output frequency, 1 GS/s sample rate, and 16 MSa/ch record length. Its advanced touch interface, real-time waveform monitoring, and patented InstaView™ technology set a new standard in waveform precision and usability.
It supports Basic and Advanced modes, enabling sequencing of up to 256 waveforms with complex timing and optional 128 Mpts/ch total length for extensive testing scenarios.
Testwall can supply the used Tektronix AFG31101, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31101.
