Tektronix AFG31102
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 100 MHz |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 16-bit |
| Waveform Memory | 131,072 points per channel |
| Output Amplitude | 1 mVpp to 10 Vpp (into 50Ω) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Gaussian, Lorentz, Haversine, Sinc, Exponential Rise/Fall, Noise, PRBS |
| Frequency Resolution | 1 µHz |
| Display | 5-inch capacitive touchscreen, 800 x 480 resolution |
| Connectivity | USB Host, USB Device, LAN (LXI Core), GPIB (optional) |
Tektronix AFG31102 Options:
- AFG31102 - MEM - Extends arbitrary waveform memory to 128 Mpts/ch in Advanced mode
- AFG31102 - SEQ - Enables Sequence, Triggered and Gated modes in Advanced mode
- AFG31102 - AUP-AFG3SEQ-2 - Enables Sequence, Triggered, and Gated modes in Advanced mode (node locked license, two channel)
- AFG31102 - AUP-AFG3MEM-2 - Extends arb memory to 128 Mpts/ch in Advanced mode (node locked license, two channel)
- AFG31102 - AUP-AFG3BW50T100-2 - Bandwidth extension from 50 MHz to 100 MHz (two channel)
- AFG31102 - Opt. A0 - North America power plug (115 V, 60 Hz)
- AFG31102 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG31102 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG31102 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- AFG31102 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- AFG31102 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- AFG31102 - Opt. A10 - China power plug (50 Hz)
- AFG31102 - Opt. A11 - India power plug (50 Hz)
- AFG31102 - Opt. A12 - Brazil power plug (60 Hz)
- AFG31102 - Opt. A99 - No power cord
- AFG31102 - Opt. L0 - English front panel overlay (default)
- AFG31102 - Opt. L1 - French front panel overlay
- AFG31102 - Opt. L2 - Italian front panel overlay
- AFG31102 - Opt. L3 - German front panel overlay
- AFG31102 - Opt. L4 - Spanish front panel overlay
- AFG31102 - Opt. L5 - Japanese front panel overlay
- AFG31102 - Opt. L6 - Portuguese front panel overlay
- AFG31102 - Opt. L7 - Simplified Chinese front panel overlay
- AFG31102 - Opt. L8 - Traditional Chinese front panel overlay
- AFG31102 - Opt. L9 - Korean front panel overlay
- AFG31102 - Opt. L10 - Russian front panel overlay
- AFG31102 - Opt. L99 - No front panel overlay
- AFG31102 - Opt. C3 - Calibration Service 3 Years
- AFG31102 - Opt. C5 - Calibration Service 5 Years
- AFG31102 - Opt. D1 - Calibration Data Report
- AFG31102 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG31102 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG31102 - Opt. R5 - Repair Service 5 Years (including warranty)
- AFG31102 - Opt. T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance
- AFG31102 - Opt. T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance
| Model | AFG31102 |
|---|

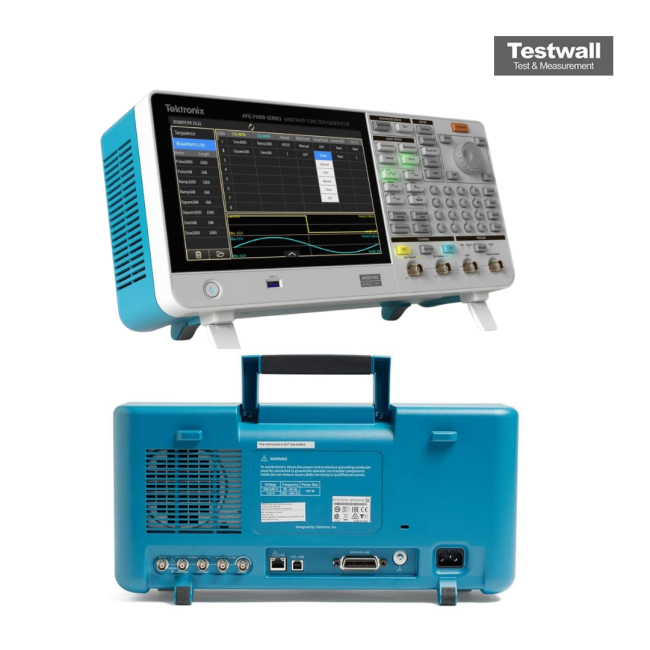

The Tektronix AFG31102 is a dual-channel arbitrary function generator offering 1μHz to 100MHz sine waves, 14-bit vertical resolution, and an output range of 1mVP-P to 10VP-P into 50-ohm loads. It includes built-in standard waveforms and supports sweep, burst, and multiple modulation modes like AM, FM, PM, FSK, and PWM. Its 9-inch capacitive touchscreen enhances usability and precision control.
The AFG31102 features advanced capabilities such as 16Mpts memory per channel, InstaView™ real-time waveform monitoring, and ArbBuilder for creating complex custom waveforms. Sequence mode allows programming of up to 256 waveform steps, ideal for intricate testing routines.
Testwall can supply the used Tektronix AFG31102, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31102
