Tektronix AFG31152
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 150 MHz |
| Sample Rate | 2.5 GS/s |
| Vertical Resolution | 16-bit |
| Waveform Memory Length | 131,072 points (128 k) |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50Ω), 2 mVpp to 20 Vpp (into High-Z) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, Cardiac |
| Frequency Resolution | 1 µHz |
| Display | 9-inch capacitive touchscreen display |
| Connectivity | USB, LAN (LXI Core), USB-TMC, GPIB (optional) |
| Model | AFG31152 |
|---|

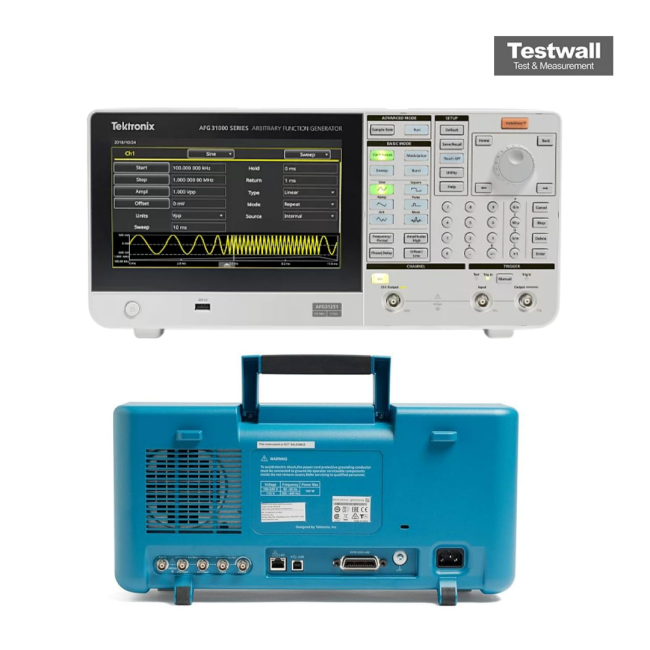

The Tektronix AFG31152 is a dual-channel arbitrary function generator offering 150 MHz frequency, 2 GS/s sample rate, and a record length of 16 MSa/ch. It features a large touchscreen, full AFG and Advanced (Sequence) modes, and patented InstaView™ technology for real-time waveform monitoring. Advanced mode enables up to 256 waveforms with up to 128 Mpts/ch length.
Designed for precision and flexibility, the AFG31152 supports complex waveform sequences, ideal for demanding testing environments. Double Pulse Test and real waveform visualization enhance DUT interaction and measurement accuracy.
Testwall can supply the used Tektronix AFG31152, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31152.
