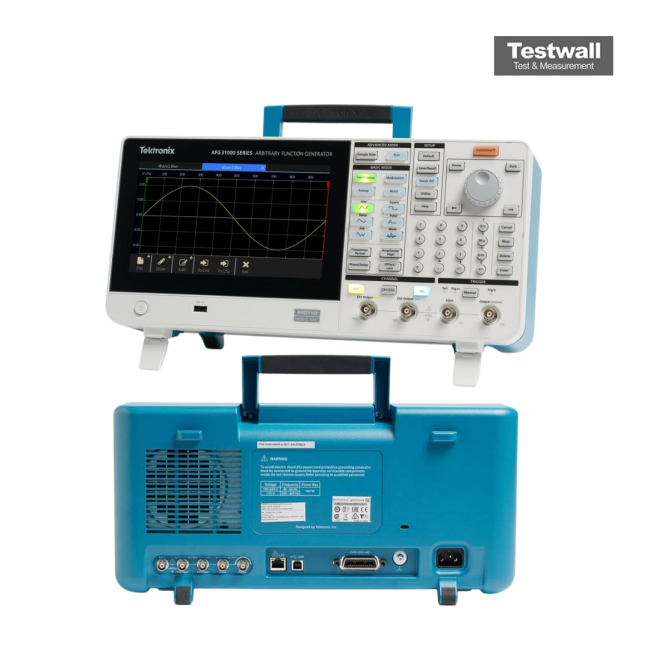

Tektronix AFG31251
| Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Maximum Frequency | 250 MHz |
| Sample Rate | 2 GSa/s |
| Vertical Resolution | 16-bit |
| Waveform Memory | 131,072 points (128 K) |
| Amplitude Range | 1 mVpp to 20 Vpp (into 50 Ω: 1 mVpp to 10 Vpp) |
| Output Impedance | 50 Ω |
| Frequency Resolution | 1 µHz |
| Display | 9-inch capacitive touchscreen |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix AFG31251 Options:
- AFG31251 - MEM - Extends arbitrary waveform memory to 128 Mpts/ch in Advanced mode
- AFG31251 - SEQ - Enables Sequence, Triggered and Gated modes in Advanced mode
- AFG31251 - AUP-AFG3SEQ-1 - Enables Sequence, Triggered, and Gated modes in Advanced mode (node locked license, one channel)
- AFG31251 - AUP-AFG3MEM-1 - Extends arb memory to 128 Mpts/ch in Advanced mode (node locked license, one channel)
- AFG31251 - AUP-AFG3BW150T250-1 - Bandwidth extension from 150 MHz to 250 MHz (node locked license, one channel)
- AFG31251 - A0 - North America power plug (115 V, 60 Hz)
- AFG31251 - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG31251 - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG31251 - A3 - Australia power plug (240 V, 50 Hz)
- AFG31251 - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG31251 - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG31251 - A10 - China power plug (50 Hz)
- AFG31251 - A11 - India power plug (50 Hz)
- AFG31251 - A12 - Brazil power plug (60 Hz)
- AFG31251 - A99 - No power cord
- AFG31251 - L0 - English front panel overlay (default)
- AFG31251 - L1 - French front panel overlay
- AFG31251 - L2 - Italian front panel overlay
- AFG31251 - L3 - German front panel overlay
- AFG31251 - L4 - Spanish front panel overlay
- AFG31251 - L5 - Japanese front panel overlay
- AFG31251 - L6 - Portuguese front panel overlay
- AFG31251 - L7 - Simplified Chinese front panel overlay
- AFG31251 - L8 - Traditional Chinese front panel overlay
- AFG31251 - L9 - Korean front panel overlay
- AFG31251 - L10 - Russian front panel overlay
- AFG31251 - L99 - No front panel overlay
- AFG31251 - C3 - Calibration Service 3 Years
- AFG31251 - C5 - Calibration Service 5 Years
- AFG31251 - D1 - Calibration Data Report
- AFG31251 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG31251 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG31251 - R5 - Repair Service 5 Years (including warranty)
- AFG31251 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
- AFG31251 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support
| Model | AFG31251 |
|---|
The Tektronix AFG31251 Arbitrary Function Generator delivers 1 µHz to 250 MHz frequency range with a 2 GS/s sample rate and 16 MSa/ch memory depth. It features a 14-bit resolution, real-time InstaView monitoring, and a 9-inch touchscreen interface. Users can program up to 256 waveform steps with built-in sequencing and create custom waveforms without a PC. It also offers advanced output protection and multi-unit sync capability.
This device is ideal for engineers needing complex waveform generation and real-time signal visualization. The AFG31251 supports TekBench software, enhancing test setup and analysis workflows.
Testwall can supply the used Tektronix AFG31251, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG31251.
