Tektronix AFG3152C
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 150 MHz |
| Sample Rate | 250 MS/s |
| Vertical Resolution | 14-bit |
| Waveform Memory Length | 131,072 points per channel |
| Output Amplitude Range | 1 mVp-p to 10 Vp-p (into 50 Ω) |
| Standard Waveforms | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise/Decay, Haversine, Cardiac |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Connectivity / Interface | USB, GPIB, LAN (LXI compliant) |
Tektronix AFG3152C Options:
- AFG3152C - A0 - North America power plug (115 V, 60 Hz)
- AFG3152C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3152C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3152C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3152C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3152C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3152C - A10 - China power plug (50 Hz)
- AFG3152C - A11 - India power plug (50 Hz)
- AFG3152C - A12 - Brazil power plug (60 Hz)
- AFG3152C - A99 - No power cord
- AFG3152C - L0 - English manual (071-1631-xx)
- AFG3152C - L1 - French manual (071-1632-xx)
- AFG3152C - L2 - Italian manual (071-1669-xx)
- AFG3152C - L3 - German manual (071-1633-xx)
- AFG3152C - L4 - Spanish manual (071-1670-xx)
- AFG3152C - L5 - Japanese manual (071-1634-xx)
- AFG3152C - L6 - Portuguese manual (071-3042-xx)
- AFG3152C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3152C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3152C - L9 - Korean manual (071-1637-xx)
- AFG3152C - L10 - Russian manual (071-1638-xx)
- AFG3152C - L99 - No manual
- AFG3152C - C3 - Calibration Service 3 Years
- AFG3152C - C5 - Calibration Service 5 Years
- AFG3152C - D1 - Calibration Data Report
- AFG3152C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3152C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3152C - R5 - Repair Service 5 Years (including warranty)
- AFG3152C - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
- AFG3152C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3152C |
|---|

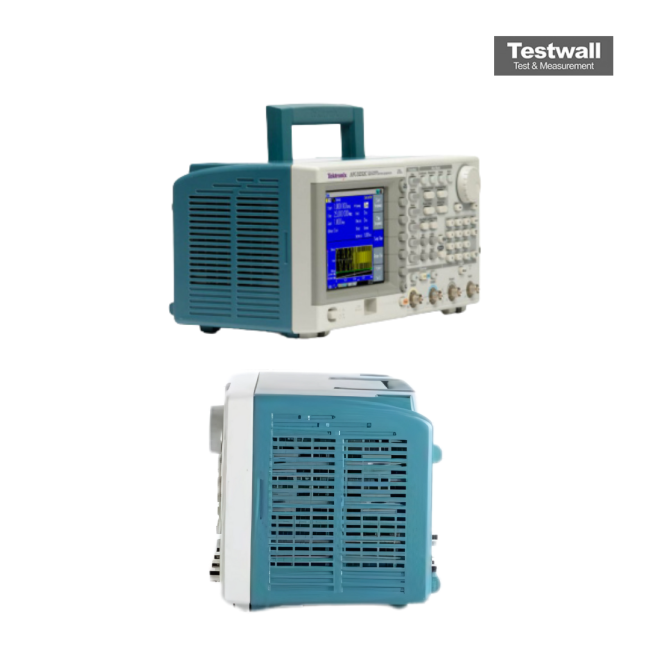

The Tektronix AFG3152C Arbitrary Function Generator offers 12 standard waveforms, 2 channels, and output frequency from 1 µHz to 150 MHz. It supports arbitrary waveforms up to 128 K points and includes signal impairment options with ±1 ppm/year time base stability.
Ideal for waveform creation and signal testing, it features independent edge timing for pulse waveforms, graphical display via a TFT LCD screen, and seamless waveform import from Tektronix oscilloscopes.
Testwall can supply the used Tektronix AFG3152C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3152C.
