Tektronix AFG3252C
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Frequency | 240 MHz |
| Waveform Types | Sine, Square, Pulse, Ramp, Triangle, DC, Noise, Sin(x)/x, Gaussian, Lorentz, Exponential Rise/Fall, Haversine, and more than 150 built-in arbitrary waveforms |
| Sample Rate | 2 GS/s |
| Vertical Resolution | 14-bit |
| Arbitrary Waveform Memory Length | 128K points per channel |
| Amplitude Range | 1 mVpp to 10 Vpp (into 50 Ω), 2 mVpp to 20 Vpp (into High Z) |
| Frequency Resolution | 1 µHz |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Connectivity & Interface | USB, LAN (LXI), GPIB (optional); USB memory port for waveform storage and firmware updates |
Tektronix AFG3252C Options:
- AFG3252C - A0 - North America power plug (115 V, 60 Hz)
- AFG3252C - A1 - Universal Euro power plug (220 V, 50 Hz)
- AFG3252C - A2 - United Kingdom power plug (240 V, 50 Hz)
- AFG3252C - A3 - Australia power plug (240 V, 50 Hz)
- AFG3252C - A5 - Switzerland power plug (220 V, 50 Hz)
- AFG3252C - A6 - Japan power plug (100 V, 50/60 Hz)
- AFG3252C - A10 - China power plug (50 Hz)
- AFG3252C - A11 - India power plug (50 Hz)
- AFG3252C - A12 - Brazil power plug (60 Hz)
- AFG3252C - A99 - No power cord
- AFG3252C - L0 - English manual (071-1631-xx)
- AFG3252C - L1 - French manual (071-1632-xx)
- AFG3252C - L2 - Italian manual (071-1669-xx)
- AFG3252C - L3 - German manual (071-1633-xx)
- AFG3252C - L4 - Spanish manual (071-1670-xx)
- AFG3252C - L5 - Japanese manual (071-1634-xx)
- AFG3252C - L6 - Portuguese manual (071-3042-xx)
- AFG3252C - L7 - Simple Chinese manual (071-1635-xx)
- AFG3252C - L8 - Traditional Chinese manual (071-1636-xx)
- AFG3252C - L9 - Korean manual (071-1637-xx)
- AFG3252C - L10 - Russian manual (071-1638-xx)
- AFG3252C - L99 - No manual
- AFG3252C - C3 - Calibration Service 3 Years
- AFG3252C - C5 - Calibration Service 5 Years
- AFG3252C - D1 - Calibration Data Report
- AFG3252C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AFG3252C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AFG3252C - R5 - Repair Service 5 Years (including warranty)
- AFG3252C - R5DW - Repair Service Coverage 5 Years (includes product warranty period); 5-year period starts at time of instrument purchase
- AFG3252C - SILV400 - Standard warranty extended to 5 years
| Model | AFG3252C |
|---|

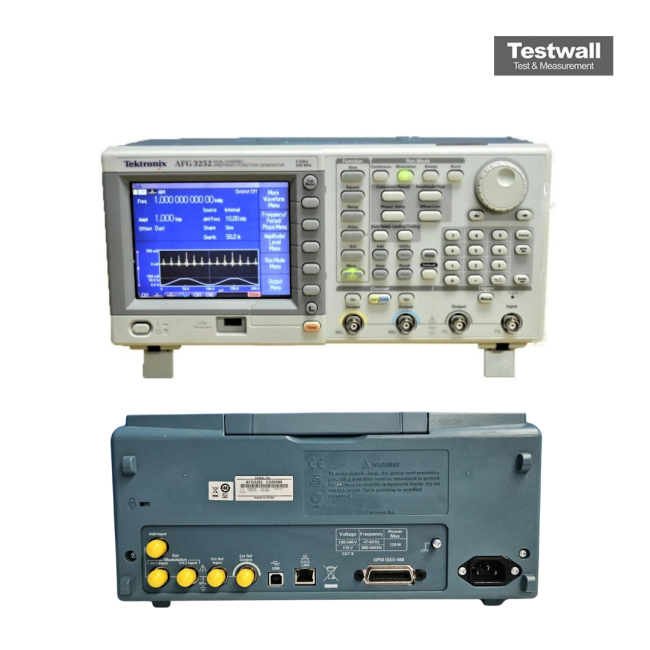

The Tektronix AFG3252C Arbitrary/Function Generator features dual channels with 240 MHz sine and 120 MHz pulse capabilities. It offers 14-bit resolution, 250 MS/s sampling rate, and supports arbitrary waveforms up to 128K in length. A stable ±1 ppm/year time base, USB, GPIB, and LAN connectivity ensure high precision and integration. The 5.6" color LCD provides easy signal visualization.
Used in electronic tests, sensor simulations, and educational training, the AFG3252C supports AM/FM/PM/FSK/PWM modulation, burst, and sweep modes, enhancing versatility.
Testwall can supply the used Tektronix AFG3252C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AFG3252C.
