Tektronix AM5030
| Attribute | Value |
|---|---|
| Measurement Type | AC/DC Current Measurement |
| Current Range | Up to 500A RMS |
| Frequency Bandwidth | DC to 20 MHz |
| Sensitivity | 1 mA/div to 50 A/div |
| Output Sensitivity | 10 mV/A |
| Maximum Conductor Diameter | 30 mm |
| Power Requirements | Powered via Tektronix oscilloscope probe power port |
| Compatible Instruments | Tektronix oscilloscopes with probe power capability |
| Operating Temperature | 0°C to +50°C |
| Probe Type | AC/DC Current Probe with Hall Effect Sensor |
Tektronix AM5030 Options:
- AM5030 - A0 - North America power
- AM5030 - A1 - Universal EURO power
- AM5030 - A2 - United Kingdom power
- AM5030 - A3 - Australia power
- AM5030 - A4 - 240 V, North America power
- AM5030 - A5 - Switzerland power
- AM5030 - C3 - Calibration Service 3 Years
- AM5030 - C5 - Calibration Service 5 Years
- AM5030 - D1 - Calibration Data Report
- AM5030 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- AM5030 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- AM5030 - R3 - Repair Service 3 Years
- AM5030 - R5 - Repair Service 5 Years
| Model | AM5030 |
|---|

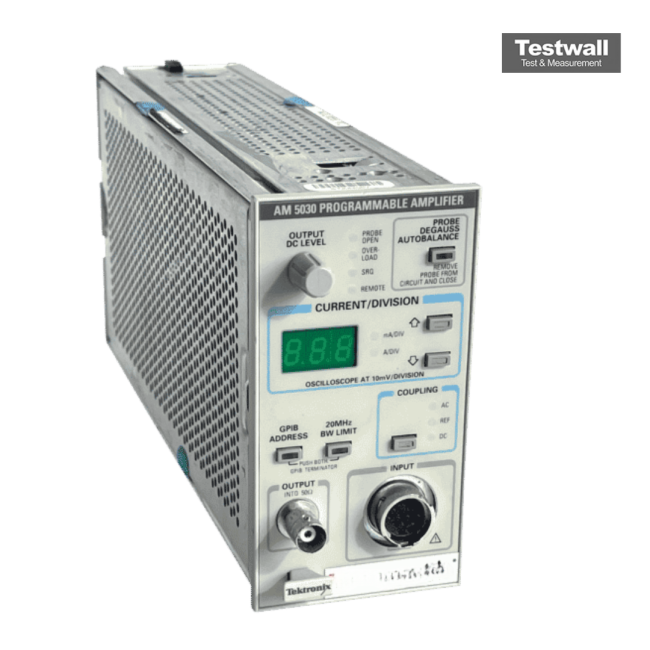

The Tektronix AM5030 Current Probe Amplifier is a GPIB-enabled TM5000 module designed for wide-bandwidth AC/DC current measurements using A6312, A6302, A6303, and XL Series probes. It features IEEE-488.1 compatibility, supports automated control, and does not require calibration with specific probes.
This amplifier can be operated via front panel or GPIB interface, and supports degauss, DC balance, and self-test functions without external controllers. Ideal for high-speed, reliable current probing.
Testwall can supply the used Tektronix AM5030, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AM5030.
